Rhino-Orbital-Cerebral Mucormycosis after Allogeneic Hematopoietic Stem Cell Transplantation and Isavuconazole Therapeutic Drug Monitoring during Intestinal Graft versus Host Disease

Rhino-Orbital-Cerebral Mucormycosis after Allogeneic Hematopoietic Stem Cell Transplantation and Isavuconazole Therapeutic Drug Monitoring during Intestinal Graft versus Host Disease

Giacomo Andreani1, Gianluca Fadda2, Dario Gned3, Matteo Dragani1, Giovanni Cavallo2, Valentina Monticone2, Alessandro Morotti1, Marco De Gobbi1, Angelo Guerrasio1, Anna Maria Barbui4, Antonio D’Avolio5 and Daniela Cilloni1.

1 Department of Clinical and Biological Sciences, University of Turin, San Luigi Gonzaga Hospital, Orbassano, Turin, Italy.
2 Department of Otolaringology, San Luigi Gonzaga Hospital, Orbassano, Turin, Italy.
3 Department of Diagnostic Imaging, San Luigi Gonzaga Hospital, Orbassano, Turin, Italy.
4 Microbiology and Virology Unit, Azienda Ospedaliera Universitaria Città della Salute e della Scienza, Turin, Italy.
5 Department of Medical Sciences, Laboratory of Clinical Pharmacology and Pharmacogenetics, University of Turin, Amedeo di Savoia Hospital, Turin, Italy.

Correspondence to: Giacomo Andreani, Department of Clinical and Biological Sciences of the University of Turin, San Luigi Gonzaga Hospital, Regione Gonzole 10, 10043, Orbassano, Turin, Italy. Tel.: +39 011 9026305; fax: +39 011 9026963. E-mail: giacomo.andreani@unito.it ORCID ID: https://orcid.org/0000-0003-4877-3929

Published: November 1, 2019
Received: July 12, 2019
Accepted: September 19, 2019
Mediterr J Hematol Infect Dis 2019, 11(1): e2019061 DOI 10.4084/MJHID.2019.061

This is an Open Access article distributed under the terms of the Creative Commons Attribution License
https://creativecommons.org/licenses/by-nc/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.


A diagnosis of rhino-orbital-cerebral mucormycosis was made in a 59-year-old man with a secondary acute myeloid leukemia a few days after hematopoietic stem cell transplantation. Prompt treatment with combined antifungal therapy (liposomal amphotericin B and isavuconazole) followed by a procedure of endoscopic sinus surgery resulted in the resolution of the infection. Therapeutic drug monitoring of isavuconazole was performed during the year of treatment showing an increment of plasma concentrations in correspondence with the improvement of intestinal GvHD, thus suggesting that in this or similar conditions TDM for isavuconazole can be of value.
A literature review of cases of rhino-orbital-cerebral and rhino-cerebral mucormycosis in allogeneic hematopoietic stem cell transplant recipients was carried out.


Mucormycosis is an aggressive and potentially fatal invasive fungal infection which can manifest by a variety of different syndromes. The genera in the order of Mucorales most commonly found in humans are Rhizopus, Mucor, Rhizomucor.[1] Fungal spores are ubiquitous in the atmosphere, but infection is a rare event. Predisposing risk factors include diabetes mellitus, hematologic malignancies, solid organ transplantation and hematopoietic stem cell transplantation (HSCT), trauma, burns, iron overload and immunosuppressive therapies. After Aspergillus, Mucorales are the most common fungal pathogens affecting patients undergoing HSCT; rhino-orbital-cerebral mucormycosis (ROCM) is the most common type of mucormycosis defined as a fulminant infection involving nose, paranasal sinuses, orbits, and brain. Management of ROCM requires a combination of antifungal therapy, debridement of involved tissues and if possible elimination of predisposing conditions. Despite early diagnosis and aggressive treatment the prognosis is poor.[2]

Case Presentation

Here, we report the case of a 59-year-old man with acute myeloid leukemia (AML) arising in August 2017 from a 5q- myelodysplastic syndrome treated with lenalidomide. A Mito-FLAG induction scheme (G-CSF from day -1, fludarabine 60 mg/die days 1-5, cytarabine 2 g over 3 h every 12 h days 1-5, mitoxantrone 12 mg/die day 1, 3 and 5) followed by two cycles of consolidation chemotherapy were administrated (Mito-FLAG again and one cycle with high-doses-cytarabine); meanwhile a donor search was started. In March 2018, after a TBF reduced-intensity conditioning regimen (thiotepa 390 mg day -6, busulfan 240 mg/die days -5 and -4; fludarabine 80 mg day -3) the patient underwent allogeneic HSCT from a matched unrelated donor. Micafungin was used for fungal prophylaxis. Rabbit-derived anti-thymocyte globulins infusion (2.5 mg/Kg days -3, -2, -1), cyclosporine A (3 mg/Kg, continuous infusion from day -1) and methotrexate (30 mg day +1 then 20 mg days +3 and +6) were administered for GvHD prophylaxis. Since the diagnosis of AML to HSCT a total of 47 units of red blood cells were transfused, deferasirox (an iron-chelating agent) was started two months before HSCT producing a ferritinemia reduction from 2713 to 1489 ng/ml few days before the beginning of conditioning regimen; deferasirox administration was stopped during the transplant procedure.
Day +1 from HSCT, the patient complained, on the right side of the face, a sharp pain mimicking trigeminal neuralgia and responsive to high doses of morphine. CT scan of brain and sinuses showed a picture of pansinusitis. At day +2, after a sudden onset of fever, empirical antibacterial therapy (piperacillin/tazobactam plus amikacin) and antifungal therapy with liposomal amphotericin B (L-Amb) were started. Diplopia occurred in day +6, a palsy of VI right cranial nerve was detected plus a sensitive deficit of V cranial nerve of the same side. Magnetic resonance imaging (MRI) of brain and sinuses plus MR angiography with contrast dye showed the presence of a mycetoma in the right sphenoidal sinus associated with thrombophlebitis of the cavernous sinus, thrombosis of the superior ophthalmic vein and possible involvement of temporal meninges in contiguity with the bone cavity.
Blood indirect biomarkers for the detection of a fungal infection (1,3-beta-D-glucan and galactomannan) were negatives over the entire period. Antifungal therapy was reinforced, a combination of L-AmB at the dosage of 7.5 mg/Kg/die plus iv isavuconazole (ISC) 200 mg (375 mg of isavuconazonium sulfate equivalent to 200 mg of ISC) every 8 hours for six doses followed by 200 mg/die was started. Day +11, the patient, still in aplasia (WBC 10/mm3, Hb 7.0 g/dl, platelets 10000/mm
3), underwent a procedure of endoscopic sinus surgery (ESS) after transfusions of blood components with no complications. The cultural and histological examination does not reveal presence of hyphae; Rhizomucor was identified by amplification and sequencing of two Internal Transcribed Spacer regions (ITS1 and ITS2) in rRNA gene. The Sanger sequencing was performed after amplification using ITS1-Forward and ITS4-reverse primers.[3]
The patient achieved myeloid engraftment at day +16 and became afebrile. The trigeminal neuralgia regressed although the VI right cranial nerve palsy persistence, antibiotics were stopped and the combined antifungal therapy was continued. A new MRI, at day +41, revealed the presence of a brain mycotic abscess with associated vasogenic cerebral edema of the right temporal lobe (Figure 1). Although the involvement of the cavernous sinus was detected, an excisional neurosurgery intervention of the cerebral abscess was not undertaken considering the procedural high-risk balanced to the benefits of an incomplete drainage. The patient was discharged, ISC was switched to oral formulation, and L-AmB was administered in an outpatient setting for 74 days in total. Cyclosporine administration was stopped one month after transplantation for fear to promote Rhizomucor growth and further dissemination. The general condition of the patient worsened; he lost 30 Kg of weight in total, parenteral nutrition was started. We were forced to introduce steroid therapy (prednisone 1 mg/Kg/die) for severe gastrointestinal, cutaneous and ocular GvHD. Because the response of cutaneous GvHD to steroids was not adequate, extracorporeal photoapheresis was started with benefit. Megestrol acetate, an orexigenic, was dispensed to treat cachexia. ISC dosage was increased to 300 mg/die in consideration of ISC plasma concentrations (Figure 2); deferasirox was reintroduced in therapy.

Figure 1 Figure 1. MRI images showing endocranial mycotic abscess at day 41 and the result at the end of treatment with ISC, day 359.

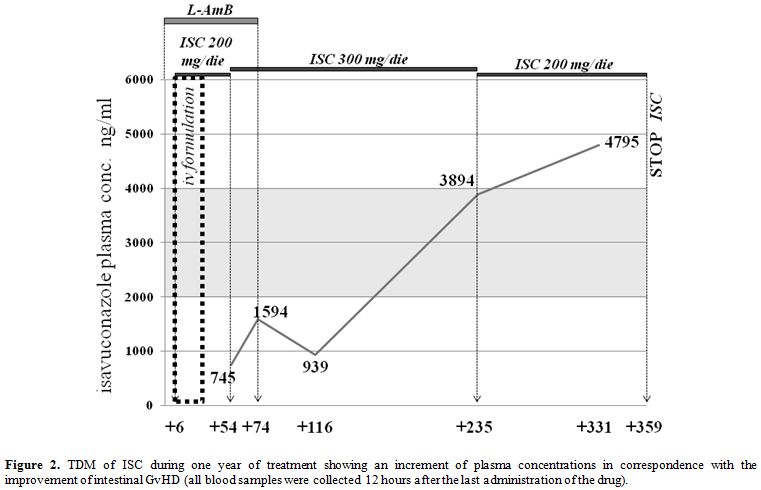

Figure 2 Figure 2. TDM of ISC during one year of treatment showing an increment of plasma concentrations in correspondence with the improvement of intestinal GvHD (all blood samples were collected 12 hours after the last administration of the drug).

At six months from HSCT, a new MRI of the brain showed the reduction of the para-cavernous abscess with partial reabsorption of the purulent quote and temporal lobe edema (Figure 1). Complete thrombosis of the right internal carotid artery was detected but patient remained completely asymptomatic for it. We decided to continue antifungal therapy with ISC at 300 mg/die then we reduced the dosage to 200 mg/die based on therapeutic drug monitoring (TDM).
Patient’s mood improved and body weight with it, he started to have a complete meal and to walk again with crutches. Palsy of VI right cranial nerve regressed almost completely; prednisone was reduced and maintain to a dose of 10 mg/die for hepatic and intestinal GvHD. Revaluation of bone marrow at one year from HSCT confirmed full donor chimerism. Brain MRI revealed further reduction of the endocranial mycotic abscess (8 x 3 mm), no purulent quote was present. In accordance with clinical improvement we considered it a full response, and we decided to stop isavuconazole after 354 days of treatment.

Literature Review of Cases of Rhino-Orbital-Cerebral Mucormycosis in Allogeneic Hematopoietic Stem Cell Transplant Recipients

We searched all published journal articles in MEDLINE starting from 2005 with the search terms “Rhino-orbital-cerebral mucormycosis”, “Rhino-cerebral mucormycosis”, “Hematopoietic stem cell transplantation”. We included only case reports and case series of ROCM, or rhino-cerebral mucormycosis (RCM) in which infection was diagnosed during or after allogeneic HSCT, no other extensive reviews were included due to lack of information. We identified 5 cases in literature (3 ROCM and 2 RCM) (Table 1). The type of donors were: matched related donor (MRD) in 3 cases,[4-6] a HLA (human leukocyte antigen) haploidentical donor in one case,[7] and in another case a HLA-matched donor not otherwise specified;[8] the underlying disease was AML in two cases, one case was a Ph+ B-ALL (B-cell acute lymphoblastic leukemia), one was a pre-B cell ALL (a 5-year-old boy) and another case was a T-cell prolymphocytic leukemia. The species in the order of Mucorales were different: two patients were infected by Rhizopus oryzae, one patient by Cunninghamella bertholletiae, another patient by Lichthemia corymbifera, in one case the species of Mucor was not mentioned. Fluconazole was used as fungal prophylaxis in three cases and voriconazole in one case; in another case the type of prophylaxis was not mentioned. MRI has been a fundamental tool in the suspicious of ROCM/RCM; the diagnosis was performed by microscopy and culture after biopsy or surgery debridement in 4 cases, one of which also reported performance of the sequence analysis of ITS region; in one case data was not reported. In four cases single antifungal therapy with L-Amb was administered (two of them switched from caspofungin and posaconazole respectively), in one case double antifungal therapy with L-Amb plus posaconazole was administered. In three cases surgical debridement was performed. All patients deceased few days or weeks after the onset of the infection..

Table 1 Table 1. Case series of ROCM or rhino-cerebral mucormycosis (RCM) in which infection was diagnosed during or after allogeneic HSCT.


The mortality rate of ROCM is reported being between 15% and 85% with worst prognosis for patients with brain, cavernous sinus, and carotid involvement.[9] It is fundamental to rapidly start the management, any delay on the treatment results in an increase in mortality rate. The most common finding by CT scan of patients with ROCM is simple sinusitis, and a negative CT scan does not rule out mucormycosis. MRI is recommended because it is more sensitive for detecting orbital and central nervous system (CNS) involvement.[10] In the clinical case reported above, the mycetoma appeared on MRI as an intrasinusal mass hypointense on T2w and non-homogeneously hyperintense on T1w with a peripheral contrast enhancement due to inflammatory thickening of the surrounding mucosa; artifacts consistent with the presence of iron and manganese were detected in T2w*. Differential diagnosis with granulomatous sinusitis is difficult on MRI; conversely a contrast enhancement of the mass is more suspicious for the presence of a squamous cell carcinoma or lymphoma of the sinus. Finally, mucocele can be quite easily distinguished, among other things, for its hyperintensity on T2w on MRI.
Serum test, 1,3-beta-D-glucan assay, and galactomannan assay are not useful in patients suspected of having mucormycosis because Mucorales do not have these components on cell wall. Identification of the pathogen most often comes from microscopy, culture, histopathological examination and/or sequencing of specific DNA regions on biopsy samples but it is essential to know that no more than 50% of cases are diagnosed by combined histopathology and culture; molecular techniques are intriguing and increasingly used methods that can be rapidly performed, on different samples (for instance on blood), in the suspicious and/or in the monitoring of the infection with less or no procedural risks for patients.[3]
Optimal therapy requires a multidisciplinary approach consisting on a prompt antifungal therapy, reversal of underlying predisposing conditions (whenever possible, e.g. severe neutropenia) and surgical debridement is recommended, when feasible.[11] The use of deferasirox in mucormycosis is debated: it has been demonstrated that deferasirox, contrary to deferoxamine, do not act as siderophore for Mucorales indeed it has a fungicidal effect;[12] the result of higher mortality rate at 90 days in the group of deferasirox plus L-AmB compared to L-AmB alone in a very small (n= 20) prospective, double-blind, placebo-controlled trial of hematologic patients appears very difficult to interpret because of important imbalanced characteristics between two treatment groups.[13] To sum up we suggest to introduce deferasirox in mucormycosis treatment as soon as possible; this is what we did with our patient. Moreover, we administered iron chelator few weeks before transplantation to reduce high levels of ferritinemia due to several blood transfusions, despite this we consider iron overload in our patient as one of the major culprits of the early onset of the infection after HSCT, together with the condition of aplasia and immunosuppression.
Concerning antifungal therapy tout-court, we initially adopted a combined treatment with L-AmB and ISC, followed by a prompt surgical debridement. Next we stepped down therapy to ISC only, because of patient inability to attend daily the outpatient clinic (Italian National Health Service does not allow L-Amb administration in a home setting therapy). ISC is a broad-spectrum azole drug with activity against yeasts, mould and dimorphic fungi, and it has been approved by FDA as first-line treatment for mucormycosis and by EMA in cases in which L-AmB is inappropriate.[14] Considering the condition of profound immunosuppression of our patient and in light of CNS involvement we opted for a combined antifungal therapy ab initio, as already reported from other groups.[15] Although many works declare no apparent relationship between exposure and efficacy to suggest routine TDM for ISC, the same raise the issue for patients with intestinal GvHD in which drug absorption through the oral route can be decreased and in cases of CNS involvement.[16] In our patient ISC plasma concentrations after switch to oral formulation were below expected range of values, 2000-4000 ng/ml considering ISC Minimum Inhibitory Concentrations for Rhizomucor from previous studies[17] (ISC plasma concentrations were assessed by an HLPC/GC-mass spectrometry assay),[18] coinciding with a severe intestinal GvHD so we opted for an increment in dosage to 300 mg/die. However, ISC plasma concentrations grew up dramatically only after improvement of intestinal GvHD although the reduction in ISC dosage. A recently published work assessing ISC plasma concentration in 19 patients with hematologic malignancies (six of them previously undergone allogeneic HSCT) retrospectively observed an increment in ISC concentration overtime during treatment, authors speculate that the increasing trend could be due to expected drug accumulation in tissues and consequently in plasma.[19] Regardless of different possible explications we can formulate for the trend of TDM, it is crucial to identify ISC efficacy concentration thresholds. The aim is to pursue a correct dose adjustment in those patients, like HSCT recipients, in whom intestinal absorption is reduced and in whom concomitant medications can modify ISC concentrations.[20] In lack of defined thresholds we believe that in this hematologic setting of large interpatient pharmacokinetic variability, TDM of ISC can be a tool of value to sustain clinician in the decision-making giving the possibility to compare drug exposure of the patient to results that came out from clinical trials and to those they are coming out on real-world practice.
