Received: June 19, 2017
Accepted: October 4, 2017
Mediterr J Hematol Infect Dis 2017, 9(1): e2017057 DOI 10.4084/MJHID.2017.057
This article is available on PDF format at:
| This is an Open Access article distributed
under the terms of the Creative Commons Attribution License
(https://creativecommons.org/licenses/by-nc/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
lymphohistiocytosis (HLH) is a life-threatening
hyperinflammation caused by uncontrolled proliferation of
activated lymphocytes and histiocytes. Often, HLH is an acquired
syndrome. We report a case of a nine month-old-boy presented with
hepatosplenomegaly, severe anemia, thrombocytopenia,
hypertriglyceridemia and high hyperferritinemia. These clinical
features of HLH prompted a wide range of infectious and auto-immune
tests to be performed. After an extensive diagnostic workup, he
was referred to the immune-hematologic unit for HLH suspicion with an
unknown cause. Primary HLH due to familial lymphohistiocytosis
(FLH) was first evoked in front of consanguinity, probable HLH in the
family, early onset, and in the absence of a causative pathology like
infection or cancer. However, functional tests were normal. Atypical
features like the: absence of fever, hypotonia, recurrent diarrhea
since diversification, hematuria, and proteinuria suggested an inborn
metabolism error with gastrointestinal involvement. Specific tests were
performed to reach a final diagnosis.
HLH can be primitive in children, underlying inherited immune deficiencies. Primary HLH is an autosomal recessive or X-linked primary immune deficiency including familial HLH (FLH) in which the clinical syndrome of HLH is the only manifestation. Four subtypes of FLH are defined by mutations in the following genes: PRF1 in FHL2, UNC13D in FHL3, STX11 in FHL4, and STXBP2 in FHL5. The Chediak-Higashi syndrome (CHS 1), Griscelli syndrome (GS 2), Hermansky–Pudlak syndrome (HPS) and X linked proliferative syndrome (XLP) are primary immune deficiencies having distinctive clinical features besides the recurrent primary HLH.[2-4]
However, HLH is, often, an acquired or secondary syndrome which can occur in all age groups. Infection-associated HLH could be triggered by various agents such as viruses of the herpes group, especially Epstein-Barr virus (EBV) and cytomegalovirus (CMV) or by no viral agents such as Leishmania. Acquired HLH could also be associated with malignant diseases, especially lymphomas and to autoimmune diseases.[2-5] It has rarely been described HLH secondary to inborn errors of metabolism such as Lysinuric protein intolerance (LPI), a rare metabolic disorder resulting from recessive-inherited mutations in the SLC7A7 gene encoding the cationic amino-acids transporter subunit y+LAT1. This pathology is characterized by protein-rich food intolerance with secondary urea cycle disorder. It is a multiorgan disease, that could lead to infiltrative lung disease, kidney failure or auto-immune complications. The phenotypic heterogeneity of LPI has resulted in various misdiagnoses.[6-11]
We report, herein, the case of 9-month-old boy investigated for a persistent HLH with very high hyperferritinemia. Throughout this case, we describe the atypical presentation and outcome of HLH and we insist on differential diagnosis of chronic HLH that must be kept in mind of specialists.
Report of the Case
Initial workup. Physical examination showed pallor, hypotonia, failure to thrive, liver and spleen enlargement. No fever was noted. The physical examination did not reveal other abnormalities. Urine bandlets showed proteinuria and microscopic hematuria. Laboratory findings (Table 1) showed pancytopenia with normochromic normocytic non- regenerative anemia; neutropenia, lymphopenia, and thrombocytopenia), hyperferritinemia (8000 ng/ml), elevated triglycerides (14 mmol/l), high cholesterol (8 mmol/l) (Figure 1), elevated very low-density lipoproteins (VLDL) and low high-density lipoproteins (HDL). He had low fibrinogen (0.74 g/l), without other signs of disseminated intravascular coagulation, increased LDH (3200 UI/l), low urea (1,29 mmol/l) and normal creatinine. Other routine biological tests were normal. Blood and bone marrow smears showed no hemophagocytosis. Cerebrospinal fluid (CSF) exam showed no activated cells. Cerebral MRI was normal.
|Table 1. Hematological findings at admission and during follow up before and after treatment.|
Differential diagnosis and further investigations. These clinical features of Hemophagocytic lymphohistiocytosis (HLH) prompted performing other investigations looking for an acquired HLH. So a complete workup was made to rule out an infection, an autoimmune disease or malignancy: microbiological and autoimmunity tests were negative, and blood and bone marrow smears showed no blasts.
Differential diagnosis and further investigations. A primary HLH was suspected. The patient had no albinism suggesting a GS 2 or a CHS 1. He had no EBV infection suggesting an XLP. FLH was thought to be the primary cause of HLH due to parental consanguinity, history of a cousin with the same signs died at the age of 4 months, in the absence of other evident causes. Nevertheless, perforin expression and degranulation test were regular. Other underlying primary immune deficiency was searched: Immunologic tests showed average immunoglobulin G, A and M levels, moderate global lymphopenia CD4, CD8, B and NK and no increased activated lymphocytes (Table 2).
|Table 2. Immunologic tests at diagnosis.|
Final diagnosis. Moreover, several atypical elements were noted in this HLH: absence of fever, hypotonia without neurological activation detected on the CSF exam and cerebral MRI, recurrent diarrhea, hematuria and proteinuria, very high cholesterol level, and not increased HLA-DR expression. All these manifestations beginning since food diversification oriented to lysinuric protein intolerance (LPI). In fact, other metabolic errors mimicking HLH similarly like lysosomal acid lipase deficiency, or galactosemia manifest in the first days of life or at lactation, and Gaucher disease was excluded by absence of the typical cells in bone marrow and by a regular glucocerebrosidase activity in cultured fibroblasts.
Serum ammonium level was found increased at 112UI/l (normal ≤70UI/l). Metabolic tests showed an increased urinary excretion of orotic acid. The amino acid analyses from plasma and urine showed low plasma levels of cationic amino acids (CAAs) and increased urinary excretion of CAAs. Organic - acid analyses from urine at diagnosis showed increased urinary intermediary organic acids of the Krebs cycle (Table 3). This profile with low plasma levels of CAAs and increased urinary excretion, orotic aciduria and hyperammonemia is compatible with a defect in the y+LAT1 sub-unit of the cationic amino-acids transporter encoded by the SLC7A7 gene.
|Table 3. Results of amino acid analyses from plasma and urine and results of organo-acids from urine.|

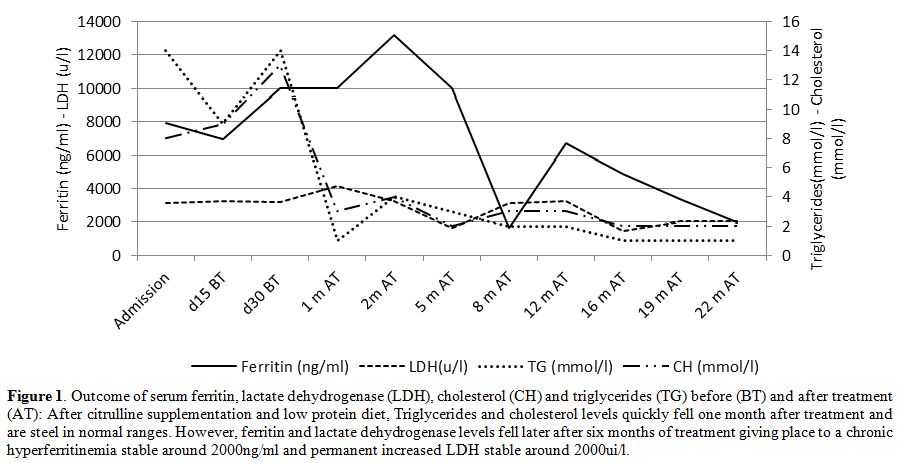

Treatment and outcome. Citrulin supplementation to 100 mg/kg/day was prescribed with protein intake limited to 0.8 g/kg/day. Liver and spleen enlargement decreased, hypotonia disappeared. The patient has gained 12 kg in two years. He needed repeated platelet and blood cell transfusions during the first month. Hematological disorders have gradually improved with persistent mild anemia not requiring further transfusions (Table 1). Ammonium, triglycerides, and cholesterol quickly fell to normal levels one month after treatment and are still in average ranges. Fibrinogen value normalized within 5 months. Serum ferritin and LDH fell later after six months giving place to a persistent hyperferritinemia around 2000 ng/ml and permanent increased LDH around 2000 UI/l (Figure 1). During follow up, 24 months of treatment, no further authentic HLH occurred.
described.[6-9] The phenotypic heterogeneity of LPI has resulted in various misdiagnoses, of the most frequent is familial lymphohistiocytosis (FLH) given clinical features of HLH which are also often found in LPI.[10-12]
According to revised haemophagocytic lymphohistiocytosis (HLH) 2004 diagnostic criteria our patient fulfills only four of eight criteria. So, the diagnosis of leaky HLH was kept. Other laboratory findings, which are considered to be of diagnostic value in HLH, were also identified in our patient: hepatic enzyme abnormalities, elevated LDH, elevated VLDL and low HDL. In fact, in these revisited criteria haemophagocytosis in bone marrow aspirate is not constant.[1,2,3] Moreover, some patients enrolled in the International Registry of HLH do not fulfill all the diagnostic criteria. It is currently accepted that hyperferritinemia in LPI is associated with LPI-related HLH even though the other HLH criteria are not prominent. Therefore, most of the non-metabolic biomarkers of LPI are explained by an underlying chronic or quiescent HLH that can progress to active HLH with fever. The hepatosplenomegaly observed in LPI reflect HLH rather than the nutritional depletion of CAAs. HLH related LPI described in our patient differs from HLH in FLH. In LPI, HLH is chronic and intermittent. The hyperferritinemia and high LDH are usually the only permanent findings.[13-15] Our patient has never normalized his ferritin and LDH levels. However, in FLH all those abnormalities are reversible and normalized when patients went into remission.[1,2] Then, fever, the most constant feature and typically prolonged in FLH related HLH, was absent in our patient. It has been described that fever is not a prominent finding in LPI related HLH. We suggest that patients with suspected HLH, based on the clinical syndrome, should undergo the functional screening that is now a standing point in the diagnosis of HLH and FLH. Based on those findings, the lack of any functional defect could be one more strong argument to evaluate LPI in a child with no fever, growth retardation, and lack of the typical dysfunction of FLH. Distinguishing features between FLH related HLH and LPI related HLH are summarized in Table 4. The phenotypic heterogeneity of LPI has resulted in various other misdiagnoses reported in the literature such as cases of LPI misdiagnosed as food protein-induced enterocolitis syndrome. The diagnosis of LPI was also made in a 5-year-old male child followed for 3 years for multiple fractures, idiopathic osteoporosis, and short stature in the absence of typical features of LPI. These unusual presentations are responsible for diagnosis delay of rare disorders for which early intervention may modify the clinical course.
|Table 4. Distinguishing features between Familial lymphohistiocytosis (FLHb) related HLHa and lysinuric protein intolerance (LPIc) related HLHa.[1-2,7,9,13-15,18-19]|
Our patient, like most of LPI subjects, displayed, other hematological and immunological abnormalities including chronic and intermittent anemia, thrombocytopenia, neutropenia and moderate global lymphopenia. Signs of T-cells dysfunction are usually present whenever investigated in LPI.[7,14,15]
The most evocative element of LPI in our patient, calling into question the FLH, was the association of leaky HLH to other features such as failure to thrive, extreme hyperlipidemia, neurological and kidney involvement and the onset of manifestations since food diversification.[9,11,14,15] Proteinuria and microscopic hematuria should be followed over time since it can develop Fanconi syndrome or end-stage renal disease requiring dialysis.[8,11]
The diagnosis of LPI is based on the presence of, at least, four of the following findings:[6,11] (1) low plasma levels of CAAs; (2) increased urinary excretion of CAAs; (3) orotic aciduria; (4) hyperammonemia generally mild with usual protein intakes, prevented by oral administration of citrulline; and (5) reduced intestinal absorption of CAAs after an oral loading test. The first four criteria were present in our patient. Nutritional imbalance of CAAs does not explain the aberrant inflammatory and immune responses. The mutation of SLC7A7 gene strongly impairs arginine efflux through system y+L in LPI monocytes and macrophages. It has been suggested that this may have a role in the crosstalk between T lymphocytes and macrophage leading to a defect in lymphocyte cytotoxic activity that prevents the efficient removal of antigens and results in abnormal immune activation of CTLs and macrophages explaining HLH in LPI.[18,19]
There have been rare case reports of HLH secondary to other inborn errors of metabolism. HLH was described in Wolman disease, a severe systemic disease manifesting in the first days of life with vomiting, diarrhea, failure to thrive, hepatosplenomegaly, jaundice, anemia, and thrombocytopenia. A neonatal onset with distinctive markers of the disease such as subcapsular adrenal calcification and the presence of cytoplasmic lipid-laden vacuoles on bone marrow smear indicate an assessment of leukocytic cholesteryl esterase activity on blood leukocytes.[20,21] Biotinidase deficiency should also be considered as a differential diagnosis of patients fulfilling HLH criteria, especially in the presence of ketolactic acidosis and organic aciduria.
Three cases with organic acidemia who developed HLH during the course of metabolic disorder have been reported. All the patients presented with metabolic acidosis and ketosis and increased histiocytes, lipid-laden macrophages in bone marrow aspirate. It was reported a case of an infant with early-onset cobalamin C deficiency who presented with HLH with symptoms of feeding difficulty, hypotonia, lethargy, and seizures in the first month of life. Urine organic acid analysis, acylcarnitine profile, and plasma homocysteine could orient to the diagnosis which must be confirmed by specific tests. HLH has also been described in association with Gaucher disease. Features of Gaucher disease, which are common to HLH, include unexplained fevers and cytopenias, both of which are explainable by the inflammation mediated by macrophages. In our patient, the cultured fibroblasts enzyme assay revealed normal glucocerebrosidase activity. These cases suggest that a careful metabolic workup should be performed, extending to more advanced tests than organic and amino-acid analyzes when facing to a pediatric patient with HLH especially if clinical features of the patient suggested a metabolic disorder including hypotonia, irritability, or mild developmental delay.
The persistent symptoms mimicking HLH in our patient must be carefully monitored since it can progress to a life-threatening condition. Immunosuppressive drugs should be considered in LPI only when there is a clear threat to life.[9,14] It was reported that combined hyperlipidemia frequently seen in LPI requires a specific treatment with HMG-CoA reductase inhibitors. However, hyperlipidemia disappeared quickly in our patient. Citrulline treatment does not improve all features in our patient. Large amounts of citrulline increase the intracellular synthesis of arginine and may further stimulate the immune cascade in reticular endothelial cells. It has been suggested that lysine supplementation could be able to ameliorate the clinical symptoms of LPI that are not corrected by citrulline.
In a child presenting HLH, a wide range of exams should be performed to rule out an infection, an autoimmune disease or malignancy, since most of these causes are treatable. If primary HLH is suspected, an underlying immune deficiency like FLH, GS, CHS, XLP, should be screened. However, metabolic diseases such as LPI must be kept in mind of specialists as a differential diagnosis of HLH, and a careful metabolic workup should be performed when facing to a pediatric patient with HLH especially if clinical features suggested a metabolic disorder. The lysinuric protein intolerance should be considered in the differential diagnosis of familial lymphohistiocytosis, especially in the absence of fever and the association of atypical clinical and biological features to HLH including hypotonia, irritability, food intolerance, and renal involvement. We suggest that patients with suspected HLH, based on the clinical syndrome, should undergo the functional screening. The lack of any functional defect could be one more strong argument to evaluate LPI in a child with no fever, growth retardation, and lack of the typical dysfunction of FLH. An early diagnosis of LPI can prevent unnecessary intensive immunosuppressive therapy and bone marrow transplantation. LPI related HLH is often chronic and quiescent with permanent hyperferritinemia. However, it must be carefully monitored since it can progress to life-threatening HLH.
- Gholam C, Grigoriadou S, Gilmour K.C, Gaspar H.B.
Familial haemophagocytic lymphohistiocytosis: advances in the genetic
basis, diagnosis and management. Clinical and Experimental Immunology
2011; 163: 271-83. https://doi.org/10.1111/j.1365-2249.2010.04302.x
- Ramachandran S, Zaidi F, Aggarwal A, Gera R. Recent advances in diagnostic and therapeutic guidelines for primary and secondary hemophagocytic lymphohistiocytosis. Blood Cells Mol Dis 2017; 64: 53–57. https://doi.org/10.1016/j.bcmd.2016.10.023 PMid:28433836
- Janka G.E. Familial and acquired hemophagocytic lymphohistiocytosis. Eur J Pediatr 2007; 166 (2):95–109 https://doi.org/10.1007/s00431-006-0258-1 PMid:17151879
- Imashuku S, Ueda I, Teramura T, Mori K, Morimoto A, Sako M, Ishii E. Occurrence of haemophagocytic lymphohistiocytosis at less than 1 year of age: analysis of 96 patients. Eur J Pediatr 2005; 164 (5): 315–19. https://doi.org/10.1007/s00431-005-1636-9 PMid:15731905
- Mehta RS, Smith RE. Hemophagocytic lymphohistiocytosis (HLH): a review of literature. Med Oncol 2013; 30(4):740. https://doi.org/10.1007/s12032-013-0740-3 PMid:24105023
- Parenti G, Sebastio G, Strisciuglio P, Incerti B, Pecoraro C, Terracciano L, Andria G. Lysinuric protein intolerance characterized by bone marrow abnormalities and severe clinical course. J. Pediatr 1995; 126 (2):246–51. https://doi.org/10.1016/S0022-3476(95)70552-X
- Duval M, Fenneteau O, Doireau V, Faye A, Emilie D, Yotnda P, Drapier JC, Schlegel N, Sterkers G, de Baulny HO, Vilmer E. Intermittent hemophagocytic lymphohistiocytosis is a regular feature of lysinuric protein intolerance. J Pediatr 1999; 134 (2):236-9. https://doi.org/10.1016/S0022-3476(99)70423-3
- Tanner L.M, Nanto-Salonen K, Niinikoski H, Jahnukainen T, Keskinen P, Saha H, Kananen K, Helanterä A, Metso M, Linnanvuo M, Huoponen K, Simell O. Nephropathy advancing to end-stage renal disease: a novel complication of lysinuric protein intolerance. J. Pediatr 2007; 150 (6):631–34. https://doi.org/10.1016/j.jpeds.2007.01.043 PMid:17517249
- Güzel-Ozantürk A, Ozgül RK, Unal O, Hişmi B, Aydın Hİ, Sivri S, Tokatlı A, Coşkun T, Aksöz E, Dursun A. Molecular and clinical evaluation of Turkish patients with lysinuric protein intolerance. Gene 2013;521 (2): 293–5. https://doi.org/10.1016/j.gene.2013.03.033 PMid:23542076
- Gupta S, Weitzman S. Primary and secondary hemophagocytic lymphohistiocytosis: clinical features, pathogenesis and therapy. Expert Rev Clin Immunol 2010; 6 (1): 137–54. https://doi.org/10.1586/eci.09.58 PMid:20383897
- Mauhin W, Habarou F, Gobin S, Servais A, Brassier A, Grisel C, Roda C, Pinto G, Moshous D, Ghalim F, Krug P, Deltour N, Pontoizeau C, Dubois S, Assoun M, Galmiche L, Bonnefont JP, Ottolenghi C, de Blic J, Arnoux JB, de Lonlay P. Update on Lysinuric Protein Intolerance, a Multi-faceted Disease Retrospective cohort analysis from birth to adulthood. Orphanet J Rare Dis 2017 ; 12(1):3. https://doi.org/10.1186/s13023-016-0550-8 PMid:28057010 PMCid:PMC5217205
- Shinsaku I. Hyperferritinemia in Hemophagocytic Lymphohistiocytosis and Related Diseases. Pediatr Blood Cancer 2008; 51 (3):442–6 https://doi.org/10.1002/pbc.21623 PMid:18506755
- Aricò M, Janka G, Fischer A, Henter JI, Blanche S, Elinder G, Martinetti M, Rusca MP. Hemophagocytic lymphohistiocytosis. Report of 122 children from the International Registry. FHL Study Group of the Histiocyte Society. Leukemia 1996; 10(2):197-203. PMid:8637226
- Ogier de Baulny H, Schiff M, Dionisi-Vici C. Lysinuric protein intolerance (LPI): A multi-organ disease by far more complex than a classic urea cycle disorder. Molecular Genetics and Metabolism 2012; 106 (1):12–7 https://doi.org/10.1016/j.ymgme.2012.02.010 PMid:22402328
- Sebastio G, Sperandeo MP, Andria G. Lysinuric protein intolerance: reviewing concepts on a multisystem disease. Am J Med Genet C Semin Med Genet 2011; 157C(1):54-62 https://doi.org/10.1002/ajmg.c.30287 PMid:21308987
- Maines E, Comberiati P, Piacentini GL, Boner AL, Peroni DG. Lysinuric protein intolerance can be misdiagnosed as food protein-induced enterocolitis syndrome. Pediatric Allergy and Immunology 2013; 24: 509–510 https://doi.org/10.1111/pai.12096 PMid:23772603
- Posey JE, Burrage LC, Miller MJ, Liu P, Hardison MT, Elsea SH, Sun Q, Yang Y, Willis AS, Schlesinger AE, Bacino CA, Lee BH. Lysinuric Protein Intolerance Presenting with Multiple Fractures. Mol Genet Metab Rep 2014; 1: 176–183 https://doi.org/10.1016/j.ymgmr.2014.03.004 PMid:25419514 PMCid:PMC4235665
- Barilli A, Rotoli BM, Visigalli R, Bussolati O, Gazzola GC,Gatti R, Dionisi-Vici C, Martinelli D, Goffredo BM, Font-Llitjós M, Mariani F, Luisetti M, Dall'Asta V. Impaired phagocytosis in macrophages from patients affected by lysinuric protein intolerance. Mol Genet Metab 2012; 105(4):585-9 https://doi.org/10.1016/j.ymgme.2012.01.008 PMid:22325938
- Barilli A, Rotoli B.M, Visigalli R, Bussolati O, Gazzola G.C, Kadija Z, Rodi G, Mariani F, Ruzza ML, Luisetti M, Dall'Asta V. In lysinuric protein intolerance system y+L activity is defective in monocytes and in GM-CSF-differentiated macrophages. Orphanet J Rare Dis 2010; 5:32. https://doi.org/10.1186/1750-1172-5-32 PMid:21110863 PMCid:PMC2999609
- Rabah F, Al-Hashmi N, Beshlawi I. Wolman's disease with secondary hemophagocytic lymphohistiocytosis. Pediatr Hematol Oncol 2014; 31(6):576-8. https://doi.org/10.3109/08880018.2014.920942 PMid:24933302
- Taurisano R, Maiorana A, De Benedetti F, Dionisi-Vici C, Boldrini R, Deodato F. Wolman disease associated with hemophagocytic lymphohistiocytosis: attempts for an explanation. Eur J Pediatr 2014;173(10):1391-4. https://doi.org/10.1007/s00431-014-2338-y PMid:24844354
- Kardas F, Patiroglu T, Unal E, Chiang SC, Bryceson YT, Kendirci M. Hemophagocytic syndrome in a 4-month-old infant with biotinidase deficiency. Pediatr Blood Cancer 2012; 59(1):191-3. https://doi.org/10.1002/pbc.23247 PMid:22605457
- Gokce M, Unal O, Hismi B, Gumruk F, Coskun T, Balta G, Unal S, Cetin M, Kalkanoglu-Sivri HS, Dursun A, Tokatlı A. Secondary hemophagocytosis in 3 patients with organic acidemia involving propionate metabolism. Pediatr Hematol Oncol 2012; 29(1) :92-8. https://doi.org/10.3109/08880018.2011.601402 PMid:21970506
- Susan Wu, Ignacio Gonzalez-Gomez, Thomas Coates, Shoji Yano. Cobalamin C disease presenting with hemophagocytic lymphohistiocytosis. Pediatr Hematol Oncol 2005; 22(8):717-21. https://doi.org/10.1080/08880010500278871 PMid:16251179
- Sharpe LR, Ancliff P, Amrolia P, Gilmour KC, Vellodi A. Type II Gaucher disease manifesting as haemophagocytic lymphohistiocytosis. J Inherit Metab Dis. 2009; 32 (1): S107-10. https://doi.org/10.1007/s10545-009-1091-2 PMid:19267217
- Tanner LM, Niinikoski H, Näntö-Salonen K, Simell O. Combined hyperlipidemia in patients with lysinuric protein intolerance. J Inherit Metab Dis 2010; 33 Suppl 3:S145-50. https://doi.org/10.1007/s10545-010-9050-5 PMid:20177788
- Lukkarinen M, Nanto-Salonen K, Pulkki K, Aalto M, Simel O. Oral Supplementation Corrects Plasma Lysine Concentrations in Lysinuric Protein Intolerance. Metabolism 2003; 52(7): 935-8. https://doi.org/10.1016/S0026-0495(03)00089-1
