Review Articles

Treatment of Acute Promyelocytic Leukemia with Single-Agent Arsenic Trioxide

Vikram Mathews, Ezhilarasi Chendamarai, Biju George, Auro Viswabandya and Alok Srivastavao

Department of Haematology, Christian Medical College and Hospital, Vellore, India.


Correspondence to: Vikram Mathews. Department of Haematology, Christian Medical College and Hospital, Vellore 632004, India. Tel. 91-416-2282891 Fax. 91-416-2226449 E-mail:  vikram@cmcvellore.ac.in

Published: November 28, 2011
Received: October 23, 2011
Accepted: November 11, 2011
Mediterr J Hematol Infect Dis 2011, 3(1): e2011056, DOI 10.4084/MJHID.2011.056
This article is available from: http://www.mjhid.org/article/view/9406
This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited


Abstract

It is well recognized that arsenic trioxide (ATO) is an efficacious agent for the treatment of acute promyelocytic leukemia (APL). Use of single agent ATO in the treatment of APL leads to remissions which are durable in the majority. ATO is probably the most effective single agent in the treatment of APL and there have been very few reports of primary resistance. It has been used both as a single agent and in combination with other conventional drugs to treat APL. Use of ATO is the accepted standard of care in the management of relapsed APL, where it is often used effectively as a bridge to a stem cell transplant. However, its role in newly diagnosed APL remains controversial. ATO probably has multiple mechanisms of action. Better understanding of its mechanisms of action/s is likely to lead to more rationale use of this agent or its derivatives either alone or in combination with other drugs. There is limited data on the kinetics of leukemia clearance and normal haematopoietic recovery after the administration of single agent ATO for the treatment of APL, preliminary data suggests that it is likely to be different from conventional therapy. There have been a number of concerns of the potential short and long term toxicity of this agent. Most such concerns arise from the toxicity profile noted in people exposed to long term arsenic exposure in the environment. With the therapeutic doses and schedules of administration of ATO in the treatment of malignancies the overall toxicity profile has been favorable. In a resource constrained environments the use of a single agent ATO based regimen is a realistic and acceptable option to treat almost all patients. In the developed world it has the potential in combination with other agents to improve the clinical outcome with reduction of dose intensity of chemotherapy and remains an option for patients who would not tolerate conventional therapy. In this review we focus on the use of single agent ATO for the treatment of APL and summarize our experience and review the literature.


Introduction
Arsenical compounds were used as early as 2000 BC, both as a medicine and as a poison1. The use of these compounds as medicines was familiar to the early physicians such as Hippocrates (460 – 377 BC), Aristotle (384 – 322 BC) and Pliny the Elder (23 – 79 AD). It was Paracelsus (1493 – 1541 AD) who used arsenicals extensively and was quoted as saying “All substances are poisons; the right dose differentiates a poison from a remedy”.1 In the eighteenth century, Fowlers solution (1% potassium arsenite) was very popular and was used in the treatment of various ailments, predominantly for dermatological conditions.[1]
Historically the prominence of arsenic trioxide (ATO) in the treatment of acute promyelocytic leukemia (APL) followed the observation of Chinese investigators at Harbin Medical University who systematically studied the role of arsenic based traditional Chinese recipe called ‘Ailing I,’ that had been reported to be useful in the treatment of various malignancies.  They labeled this native preparation 713 (for the year and month that the study was initiated) and studied it more than a 1000 patients with various malignancies2. They soon noted that this agent worked best in the treatment of patients with APL. Two subsequent Chinese studies confirmed the benefit of this agent in APL.[3,4]
Since then there have been numerous reports on the use of ATO in the treatment of relapsed and newly diagnosed cases of APL. In this review we focus mainly on the treatment of APL with single agent ATO. We review our centers experience from 1998 and attempt to put this into context of current international management strategies, experience from other centers and address the socio-economic relevance of this strategy. We also attempt to highlight the significant differences in this approach compared to that when chemotherapeutic agents are used up front. Very briefly we also address the mechanism of action of this agent, the pharmacokinetic data and toxicity profile which we feel is critical to this discussion.

Mechanism of Action of Arsenic Trioxide.
The mechanism by which ATO induces remission in APL is still under evaluation. Table 1 summarizes the postulated mechanisms by which ATO mediates its anti-leukemia effect. While some aspects of its cellular effects are clear, the molecular basis, for these protean effects are not fully defined. Initial in-vitro studies suggested that it induces apoptosis in APL (NB4) cell lines by down regulation of Bcl-2.5 However, the clinical observation that a leucocytic response followed the administration of ATO consistently in the majority of patients, was suggestive of a differentiating process, as seen following the use of all-trans retinoic acid (ATRA). It was subsequently reported that in fact a dual effect of ATO was seen on promyelocytic cell lines, at low doses (0.1 – 0.5  umol/lt) there was partial differentiation and at higher doses there was preferential apoptosis (0.5 – 2 umol/lt).[6] This has been subsequently  demonstrated  by  a  number  of other groups independently.[7,8] The differentiation with ATO is incomplete and usually proceeds only till the myelocyte stage following which it appears that apoptosis is the predominant mode of action.[6] More recently data suggests that ATO but not ATRA can eliminate the leukemia initiating compartment in APL.[9,10] This could partly explain why ATO but not ATRA, as single agent, is able to induce durable remission in the clinic.

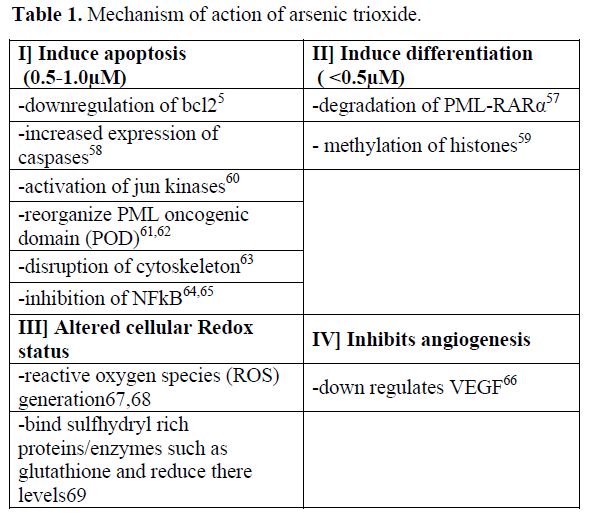

Table 1.
Mechanism of action of arsenic trioxide.


Pharmacokinetics, Pharmacogenomics, Dose and Schedule of Arsenic Trioxide.
The lethal dose recorded in the literature is a single dose of more than 100mg [11]. The dose of arsenic trioxide in the initial published study by Zhi-Xiang et al [11] was 10 mg a day for adults till complete hematological remission (CR) was achieved. Subsequently a break of 30 days was given and a second course of 28 days administered. It is important to recognize that this dosing was based on there earlier experience with doses used in native Chinese medicine and not on phase I clinical trials addressing dose limiting toxicity. The study reported by Soignet et al [12] used a similar dose for adults but used a dose of 0.15 mg/kg/day for children. From there experience they noted that ATO is active in APL from 0.06mg/kg to 0.2 mg/kg. Within this range they did not find any difference in efficacy. Subsequent studies have used similar dosages of ATO. Pharmacokinetic studies done at this dosage demonstrated that mean peak plasma levels of 6.85 micro moles / Lt (range: 5.54 – 7.30) was achieved. The plasma half life was 12.13±3.31 hours. Importantly these parameters did not change with continuous administration.[11] Reports of daily urinary excretion in the literature varies from between 1 – 8% to 32-65% of the daily dose administered and more importantly is continued even after the drug administration had been stopped.[11,13] There is limited data on the dose and scheduling of ATO in the event of significant renal failure or for patients on dialysis.[14] While the cumulative level of arsenic increases in the body (as demonstrated in hair and nail analysis) with continuous administration, the urinary excretion continues even after the ATO administration has stopped leading to a gradual decrease in the cumulative amount of arsenic trioxide in the body. In our own experience there was no significant difference in the ATO content from patients and normal controls hair and nail samples on long term follow up.[15]This was the rationale for giving 4 week breaks between the courses of ATO in the regimen used by us,[16] the breaks were intended to reduce the cumulative dose significantly.
This pattern of ATO exposure is very different from that seen with environmental toxicity where there is a slow but constant accumulation of arsenic which leads to a toxicity profile that is very different from that seen when ATO is used in therapy at currently recommended doses and schedules. Extrapolating and anticipating the toxicity profile seen with chronic environmental exposure to the potential toxicity with currently used dosage schedules of ATO is unfair, unwarranted and without any scientific basis. In the absence of a dose defining phase I clinical trial there is insufficient data on the upper limit of a safe therapeutic dose. It is of interest to note that in our initial cohort we noted a decreased risk of relapse among patient who had hepatotoxicity Vs. those that did not following treatment with ATO17 (Figure 1). This would suggest that there is either a significant inter-individual variation in biotransformation of this agent and as a result some patients were receiving less than an optimal dose or that there were yet unknown variables that resulted in this association.[17] There is a need to revisit what is the optimal dose of ATO to treat APL in a large clinical trial. There is very limited data on the optimal duration of administration of ATO as a single agent in the management of ATO. Based on the general consensus that maintenance was required in the management of APL we arbitrarily opted for a 6 months duration of maintenance.[16] Recently published data from Iran suggests that 4 courses of ATO was significantly better than 2.[18] We subsequently undertook a larger multi-center study and randomized patients with the same induction and consolidation into a 6 and a 12 month maintenance regimen and did not find a significant benefit from increasing the duration of maintenance (unpublished data, to be presented at ASH 2011). Zhou et al reported treating children with ATO for prolonged periods of up to 3 years with very good efficacy and without significantly increasing the toxicity.[19]

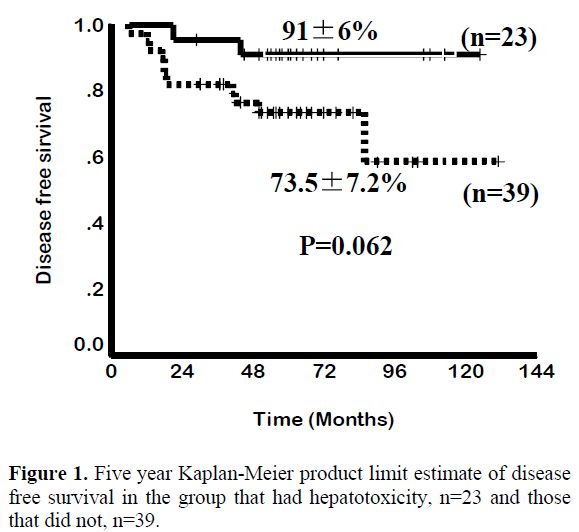

Figure 1.
Five year Kaplan-Meier product limit estimate of disease free survival in the group that had hepatotoxicity, n=23 and those that did not, n=39.


It has been noted that there is considerable inter individual variation in susceptibility to ATO induced toxicity, which is probably related to differences in in-vivo biotransformation of arsenic. This in turn could be a result of age, nutritional status, co-morbid conditions, environmental factors and genetic polymorphisms.[20] In addition to a poorly characterized arsenic methyltransferase, a number of other enzyme systems and polymorphisms have been shown to have an effect on arsenic methylation.[20,21] Of these, polymorphism in the methylene tetra-hydrofolate reductase (MTHFR) gene, which results in MTHFR deficiency in 10-20% of the Caucasian population, has been reported to be associated with increased arsenic related neurotoxicity.[22] The glutathione S-transferases (GST) are a family of proteins that conjugate glutathione (GSH) to various electrophiles.[23] Chiou et al reported that genetic polymorphisms of GST M1 and GST T1 altered the methylation of arsenic. [24] GST’s catalyze the GSH dependent reduction of hydroperoxides to their corresponding alcohols and help prevent propagation of free radicals. It is conceivable that genetic polymorphisms in these genes could alter the biotransformation of ATO, which in turn could have an impact on the efficacy and toxicity profile of this drug. We had earlier reported that the hepatotoxicity profile in a cohort of patients with newly diagnosed APL treated at our center with a single agent ATO regimen was significantly associated with the homozygous mutant of MTHFR 1298 (C/C) (RR=8.75, p=0.004) and there was a trend towards an increased risk of hepatotoxicity associated with the GST M1 null genotype (RR=3.28, p=0.06).[17] We had hypothesized then that alteration in biotransformation possibly leads to quantitative and qualitative differences in the methylated intermediaries that are generated; these differences could have a bearing on the efficacy and toxicity profile of ATO. A recent study, in part, validates this hypothesis by suggesting that dimethylarsinous acid is more toxic than inorganic ATO and monomethylyarsinic acid,[25] these are some of the methylated intermediaries produced in-vivo in humans and animals. It is potentially possible to consider in future the use of pure or combination of methylated ATO derivatives with optimal therapeutic and toxicity profiles.

Clinical Experience with the Use Of Single Agent Arsenic Trioxide in Acute Promyelocytic Leukemia.
The earliest clinical data available on the use of arsenic trioxide in the treatment of acute promyelocytic leukemia is from two publications from  China.[26,27] In these studies the complete hematological remission rate (CR) achieved varied from 65.6% to 84% and long term survival (>10 years) was seen in 9/32 patients in one of these studies.[11]Majority of the early trials involved relapsed cases of APL. There is limited data on the use of this as a single agent in the management of newly diagnosed cases of APL. Even when used as a single agent for induction chemotherapy the subsequent consolidation therapy varies making comparisons between the published data difficult to interpret.
Our early experience with ATO consisted of two patients who were treated in the early 1990’s with what was then considered standard of care regimens, one with ATRA and one without. Both these patients relapsed and were sent on palliative care considering the therapeutic options were limited, that the options were associated with poor clinical outcome and that they were very expensive. These patients subsequently took treatment from an ayurvedic (indigenous Indian medicine) practitioner and went into durable remissions. We were aware that the agent used by the practitioner contained ATO. We were however, not sure of the dose used. The therapeutic ayurvedic mix was administered continuously in these cases and for more than 5 years in one case. One of these patients developed severe arsenic keratosis and died of a secondary squamous epithelial carcinoma.[28]
It was only after the publication in 1997 by Shen et al that we had a sense of the dose of pure ATO that could be used in humans.[11] In 1998, we initiated a study using single agent ATO to treat APL, with intravenous ATO being manufactured in house in our hospital pharmacy (the basic cost without overheads per 10mg vial was Indian Rupees 20 or approximately US 50 cents), with appropriate quality control measures. Due to legal related issues we transferred this manufacturing process to the industry in 2001 (INTAS pharmaceuticals Ltd, Matoda, Gujarat, India). Our observation was that there was no significant difference with the agent prepared by us or that subsequently manufactured by industry in terms of infusion related toxicity or efficacy (unpublished data).
From January 1998 to December 2004, 72 newly diagnosed cases of APL were treated with a regimen of single agent ATO at our center. The details of the regimen were as previously reported.15,16 Overall 62 (86.1%) achieved a hematological remission (CR). A total of 13 patients relapsed. At a median follow up 60 months, the 5 year Kaplan-Meier estimate of EFS, DFS and OS was 69±5.5%, 80±5.2% and 74.2±5.2% respectively (Figure 2). This data has since been validated by a subsequent multi-center trial in India involving 7 centers across the country (unpublished data to be presented at ASH 2011). The data from other major studies using either single agent ATO or a ATO as a major component in front line therapy[18,19,29-31] is summarized in table 2.

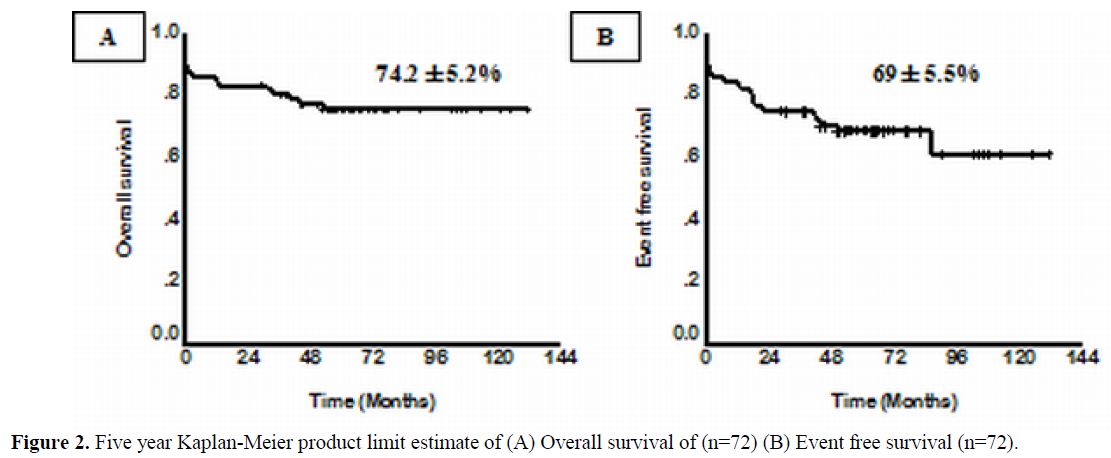

Figure 2.
Five year Kaplan-Meier product limit estimate of (A) Overall survival of (n=72) (B) Event free survival (n=72).

Table 2.
Summary of studies using arsenic trioxide in front line therapy in the treatment of APL.


Toxicity Profile of Arsenic Trioxide. the Theoretical Hysteria Versus the Actual Reality!
The toxicity profile in the initial series reported by us was mild, in the majority.16 Significantly, there were no infusion related toxicities, alopecia or evidence of exacerbation of coagulopathy. Post induction, almost all patients for the rest of the duration of treatment had ECOG performance scores of 0 or 1. The non hematological toxicities, as reported earlier,[16] in the majority were mild, frequently reverted on continuing ATO and in the rest were reversible on discontinuing the drug for an interval of 1 – 2 weeks.16 As reported previously 5 (6.9%) cases developed a differentiation syndrome which resolved in 4 and was fatal in one. There were no sudden deaths attributable to a cardiac event in this series of patients and on long term follow up there were no cases with clinical cardiac dysfunction. There were no documented second malignancies documented in this cohort.[15] Post remission induction, this regimen, was administered on an out patient basis. With the exception of some early reports of increased hepatic and cardiac toxicity [32-35] the majority of subsequent reports using ATO in newly diagnosed cases is similar to our experience.[18,19,29-31]
There have been periodical major concerns raised about the administration of ATO. Very early there was a concern about cardiac arrhythmia related sudden deaths in patients with APL who were treated with ATO. Almost all these deaths happened in induction in previously heavily treated patients.[32-34] There have been no such deaths reported when ATO was used for treating a number of other malignancies, albeit stable patients. Similarly, it does not appear when administered to patients with APL who are in remission (none reported in the literature).  The role of QTc interval prolongation and limitations of the corrected QTc interval value generated with tachycardia due to any cause such as infection have been reviewed previously and it increasingly recognized and accepted that QTc prolongation is an electrocardiographic phenomenon with little clinical significance in the majority of patients.[36] This does not mean we should not monitor it or ignore it, though response should be judicious and clinically appropriate. It has been reported that in more than 2900 cases treated by US-FDA approved ATO there have been no arrhythmia related deaths.36 We do not believe that there is anything sacrosanct or superior about the US-FDA approved ATO but rather that it in reality it was never a significant clinical problem beyond a few case reports where the arrythmia’s were probably related to other etiologies or at least in part contributed by them.
Next was the suggestion of acute hepatic failure and death from hepatoxocity occurred with ATO.[37] There have been no other major reports since this initial publication about 12 years ago. This has definitely not been our experience with more than 250 patients treated to date at our center (newly diagnosed and relapsed).
There has always been a concern of second malignancies with the use of ATO. This is based on in-vitro experiments suggesting oxidative DNA damage [38] and clinical observations from cases with long term environmental exposure. This theoretical concern is in contrast to clinical data available. In early reports of investigators from China it was noted that there was no increase in second malignancies in patients followed up for 10 years.[11] A similar observation was made in 1982, in a cohort of 479 patients who had been treated with Fowlers solution [potassium arsenite] for duration varying from 2 weeks to 12 years during the period 1945 – 1969. The median cumulative dose in this cohort was 448 mg. It was noted that in this cohort of patients there was a marginal increase in fatal and non-fatal skin cancers but no increase in the incidence of internal malignancies.[39]
A recent report that was meant to highlight the low probability of ATO having induced cancers in patients (3 cases) receiving oral ATO40 was interpreted in a more recent review article as ‘highlights the concern of second malignancies’ in patients treated with ATO.41 To the best of our knowledge there are no other (if one insists on considering the previous report as second cancer to ATO therapy) reported cases of second cancers after administration of ATO at currently defined therapeutic doses.  It would be reasonable at this point, though with limited long term follow up data, to state that second cancers following ATO are less than that reported following therapy of acute myeloid leukemia with currently accepted standard of care regimens.
There have been concerns raised about embryo toxicity based on animal models and some data from cases with environmental exposure.[42] This again is not based on data in humans exposed to currently accepted therapeutic doses of ATO, this data for obvious ethical reasons is unlikely to be ever generated. However in our series, seven of the patients (4 women and 3 men) have had 8 normal babies,[15] though all happened after completion of therapy. In this relatively young cohort there were no reports of abortions, fetal abnormalities or still births in any couple. While we did not actively evaluate fertility there were no reports of couples requesting evaluation for sterility.[15]
Hair and nail samples from 5 patients of this cohort who had completed therapy at least two years earlier was compared with that of 5 patients who had just completed therapy (not from this cohort)  and 5 healthy controls. There was no significant difference in the ATO retention in hair and nail samples of controls and patients who had completed therapy at least two years earlier.15 The median levels, even among the patients who had just completed therapy was below the lower limit of the normal range described for normal controls by the Agency for Toxic Substances and Disease Registry (ATSDR based in Atlanta, Georgia, USA (http://www.atsdr.cdc.gov/).[15]

Pattern and Timing of Haematopoietic Recovery Following Treatment with Single Agent Arsenic Trioxide. In our initial series the median time to achieve CR was 42 days (range: 24-70).[16] However, this figure does not reflect the entire details of the kinetics of leukemia clearance and pattern of normal hematopoiesis recovery. As reported initially by us about two thirds of patients have a leucocytic response after initiation of ATO while in about a third there is prolonged leucopenia prior to gradual normalization.[43] The leucocytosis can at times be very rapid and alarming and based on our early observations we had introduced hydroxyurea to control this leucocytosis with a recommended sliding scale to adjust the dose depending on the WBC count.[16] We also noted that this was at times not adequate and we allowed use of an anthracycline in induction if there was rapid rise in the WBC counts after initiation of therapy at pre-defined levels and time points.[16] In cases that there is leucocytic reponse there is often a second leucopenic phase (variable duration) and then recovery to normal values43 (a triphasic response; Figure 3). Unlike with the use of ATRA plus chemotherapy schedules the WBC count remains high (in two thirds) or very low (in one third), with a low platelet count and significant circulating promyelocytes for the first two weeks as illustrated in Figure 4. At this time point (around 2 weeks into therapy) there is often a concern raised, among those not familiar with this agent, as to whether ATO is doing anything at all to the disease and a consideration to change protocol or add on additional drugs is discussed. However, if the diagnosis is correct, with adequate support during this period and continuing ATO, all patients will go on to achieve CR. Another common observation in some cases is a clinically stable patient in the 4th week of therapy, with a normal platelet count but very low WBC count and a consideration to stop ATO is made based on the argument that the ATO is causing a myelosuppresive effect. Our experience would suggest that ATO need not be stopped here but can be safely continued for the intended duration and one would probably be compromising treatment by prematurely stopping therapy at this time point.


Figure 3.
Average WBC count among patients with a leucocytic response and who achieved complete remission (n=6), illustrating the triphasic response.

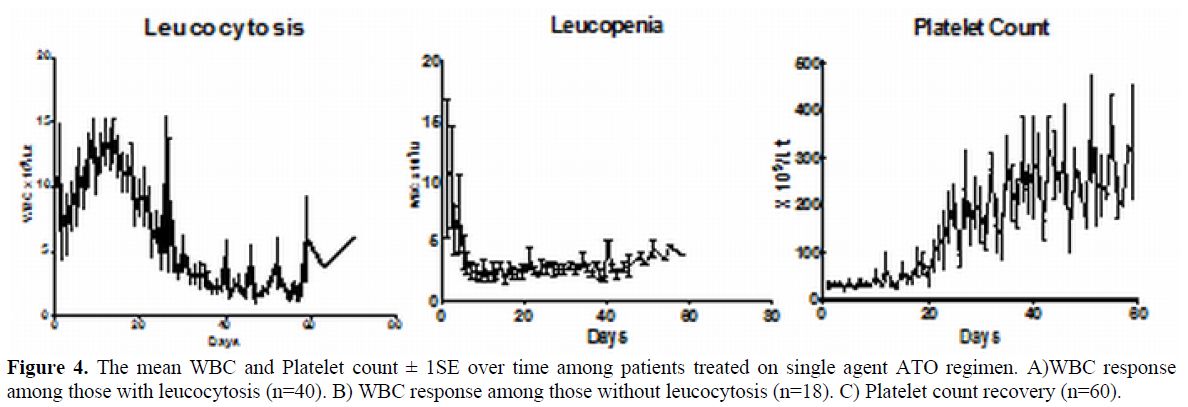

Figure 4.
The mean WBC and Platelet count ± 1SE over time among patients treated on single agent ATO regimen. A)WBC response among those with leucocytosis (n=40). B) WBC response among those without leucocytosis (n=18). C) Platelet count recovery (n=60).


Pattern of Molecular Response Following Therapy with Arsenic Trioxide.
It is well recognized that the kinetics of leukemia clearance with the use of ATO, in induction, is significantly different from that of ATRA alone or ATRA plus chemotherapy combinations.[44] It is not well studied or reported as to what the effects of ATO in consolidation and maintenance are on the kinetics of relapse. Extrapolation of data generated from ATRA plus chemotherapy regimens may potentially not be valid when applied to regimens that use ATO in upfront therapy. With conventional ATRA plus chemotherapy regimens it is well recognized that a positive RT-PCR at the end of induction did not have a significant prognostic effect while in those who were positive post consolidation had an increased risk of relapse.41,45 From our own data (unpublished, accepted for presentation at ASH 2011) a positive RT-PCR at the end of induction was the most significant risk factor for subsequent risk of relapse on a multivariate analysis (RR=4.9; 95% CI=1.13-21.20; P-value=0.034) and a positive RT-PCR at this time point had a sensitivity of 86.7% and specificity of 42.3% for predicting relapse (Figure 5). In this single agent low intensity ATO regimen the presence of a positive RT-PCR at the end of induction could potentially help identify a subset of patients who may benefit from intensification of this regimen. This strategy remains to be validated in a large clinical trial.

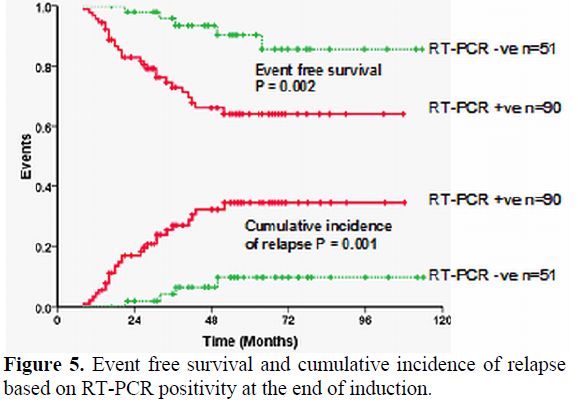

Figure 5.
Event free survival and cumulative incidence of relapse based on RT-PCR positivity at the end of induction.


Impact of Additional Cytogenetic and Molecular Markers Such as FLT3 Mutations on Clinical Response Following Treatment with Arsenic Trioxide.
The presence of cytogenetic abnormalities at diagnosis remains an important prognostic variable in patients with newly diagnosed AML. Secondary cytogenetic changes have been reported to have an adverse impact in some subsets of AML, though in patients with APL treated with conventional chemotherapy a similar adverse effect was not reported. We initially reported a small series of newly diagnosed patients with APL treated with single agent ATO in which our analysis suggested that there was no significant adverse impact of the presence of an additional karyotypic abnormality at diagnosis. However, a more recent analysis of our data (larger cohort) does suggest that there may be an adverse impact of an additional cytogenetic finding at diagnosis in newly diagnosed patients though it was not significant on a multivariate analysis (unpublished data).
Fms-like tyrosine kinase 3 (FLT3) is a member of the class III receptor tyrosine kinase family and is expressed on haematopoietic progenitors.[50,51] Mutations in the FLT3 receptors have been reported to be associated with a poor prognosis in both adult and paediatric patients with a diagnosis of acute myeloid leukaemia (AML). Mutations in the FLT3 receptor are commonly seen in patients with APL50. The common activating mutations of FLT3 in leukaemia include the FLT3 internal tandem duplication (FLT3-ITD) and a point mutation in the activation loop (D835V).50 A recent gene expression profiling study reported that patients with APL could be segregated into those with and without a FLT3-ITD mutation, suggesting that these groups were biologically different.[52]  A retrospective analysis of the impact of FLT3 mutations in patients with APL, treated with conventional ATRA plus chemotherapy regimens, reported a higher incidence of induction deaths in one study while another study reported a trend towards a shorter overall survival.[54] More recently Chillon et al[55] analyzed the Spanish co-operative group data and showed that ppatient’s with increased ITD mutant/wild-type ratio or longer ITD size displayed shorter 5-year relapse-free survival (RFS) (P=0.048 and P<0.0001, respectively), though patients with D835 mutations did not show differences in RFS or overall survival (OS). In our series we found that FLT3-ITD mutation in 21% and its presence did not impact the clinical outcome of patients treated with ATO.[49] We did however note a longer time to molecular remission among those who were FLT3 mutation positive.[49]

Conclusions.
While there is no doubt as to the efficacy of ATO in the management of APL, its position in the algorithm in the treatment of this condition is still being defined for newly diagnosed cases. Based on the available data, it is clear that as a single agent it is the most effective drug in the management of APL. For patients who have relapsed following conventional ATRA plus chemotherapy regimens it is the established agent of choice to induce a second molecular remission. Preliminary concerns of fatal toxicity profile appear to be related more to the associated co-morbid conditions than the drug itself, as noted by their absence when used in patients with newly diagnosed APL without co-morbid conditions and in other malignant conditions. On going concerns that are frequently voiced about potential long term toxicity are not based on significant data. Better understanding of its in-vivo biotransformation and effect of the different methylated derivatives that are generated in this process, could potentially help further reduce its toxicity profile while enhancing its efficacy. This could be achieved by better ability to predict toxicity or efficacy based on genetic polymorphisms that have an impact on biotransformation pathways or by the use of specific methylated derivatives for therapy rather than the native compound which further research may potentially demonstrate to have a more favorable therapeutic profile.
In the developing world where the cost of ATO (generic) is low, the absence of grade III/IV neutropenia and mucositis along with the ability to administer the regimen on an out patients basis post remission induction significantly reduces the cost of treating this condition in comparison to a standard ATRA plus chemotherapy regimen. In summary there is sufficient evidence to embrace ATO as an important drug in the armamentarium for the treatment of APL, the optimal mode, combination and schedule for utilization of this agent in newly diagnosed cases remains to be defined.


References

  1. DM. J. A history of the use of arsenicals in man. J R Soc Med. 1993;86:287-289. PMid:8505753 PMCid:1294007
  2. Zhang TD. [Treatment of acute granulocytic leukemia with "Ai ling No. 1"--clinical analysis and experimental research]. Zhong Xi Yi Jie He Za Zhi. 1984;4:19-20. PMid:6233032
  3. Zhang P WS, Hu LH, Shi FD, Giu FQ, Hong GJ et al. Treatment of acute promyelocytic leukemia with arsenic trioxide injection (713): Clinical observations and study of action mode. Chin J Hematol. 1996;17:58-60.
  4. Sun HD ML, Hu XC, Zhang TD. Thirty two cases of treating acute promyelocytic leukemia by Ailing I therapy combined with syndrome differentiation treatment of traditional Chinese medicine. Chin J Comb Trad Chin Med West Med. 1992;1996:170-171.
  5. Chen GQ, Zhu J, Shi XG, et al. In vitro studies on cellular and molecular mechanisms of arsenic trioxide (As2O3) in the treatment of acute promyelocytic leukemia: As2O3 induces NB4 cell apoptosis with downregulation of Bcl-2 expression and modulation of PML-RAR alpha/PML proteins. Blood. 1996;88:1052-1061. PMid:8704214
  6. Chen GQ, Shi XG, Tang W, et al. Use of arsenic trioxide (As2O3) in the treatment of acute promyelocytic leukemia (APL): I. As2O3 exerts dose-dependent dual effects on APL cells. Blood. 1997;89:3345-3353. PMid:9129041
  7. Tang W, Chen G, Shi G. [Double effects of arsenic trioxide (As2O3) on acute promyelocytic leukemic cell line]. Zhonghua Yi Xue Za Zhi. 1997;77:509-512.
  8. Chen Z, Wang ZY, Chen SJ. Acute promyelocytic leukemia: cellular and molecular basis of differentiation and apoptosis. Pharmacol Ther. 1997;76:141-149. http://dx.doi.org/10.1016/S0163-7258(97)00090-9
  9. Zheng X, Seshire A, Ruster B, et al. Arsenic but not all-trans retinoic acid overcomes the aberrant stem cell capacity of PML/RARalpha-positive leukemic stem cells. Haematologica. 2007;92:323-331. http://dx.doi.org/10.3324/haematol.10541 PMid:17339181
  10. Ablain J, de The H. Revisiting the differentiation paradigm in acute promyelocytic leukemia. Blood. 2011;117:5795-5802. http://dx.doi.org/10.1182/blood-2011-02-329367 PMid:21444912
  11. Shen ZX, Chen GQ, Ni JH, et al. Use of arsenic trioxide (As2O3) in the treatment of acute promyelocytic leukemia (APL): II. Clinical efficacy and pharmacokinetics in relapsed patients. Blood. 1997;89:3354-3360. PMid:9129042
  12. Soignet SL, Maslak P, Wang ZG, et al. Complete remission after treatment of acute promyelocytic leukemia with arsenic trioxide. N Engl J Med. 1998;339:1341-1348. http://dx.doi.org/10.1056/NEJM199811053391901 PMid:9801394
  13. Wang Z, Zhou J, Lu X, Gong Z, Le XC. Arsenic speciation in urine from acute promyelocytic leukemia patients undergoing arsenic trioxide treatment. Chem Res Toxicol. 2004;17:95-103. http://dx.doi.org/10.1021/tx0341714 PMid:14727923
  14. Sweeney CJ, Takimoto C, Wood L, et al. A pharmacokinetic and safety study of intravenous arsenic trioxide in adult cancer patients with renal impairment. Cancer Chemother Pharmacol. 2010;66:345-356. http://dx.doi.org/10.1007/s00280-009-1169-4 PMid:19911123
  15. Mathews V, George B, Chendamarai E, et al. Single-agent arsenic trioxide in the treatment of newly diagnosed acute promyelocytic leukemia: long-term follow-up data. J Clin Oncol. 2010;28:3866-3871. http://dx.doi.org/10.1200/JCO.2010.28.5031 PMid:20644086
  16. Mathews V, George B, Lakshmi KM, et al. Single-agent arsenic trioxide in the treatment of newly diagnosed acute promyelocytic leukemia: durable remissions with minimal toxicity. Blood. 2006;107:2627-2632. http://dx.doi.org/10.1182/blood-2005-08- 532 PMid:16352810
  17. Mathews V, Desire S, George B, et al. Hepatotoxicity profile of single agent arsenic trioxide in the treatment of newly diagnosed acute promyelocytic leukemia, its impact on clinical outcome and the effect of genetic polymorphisms on the incidence of hepatotoxicity. Leukemia. 2006;20:881-883. http://dx.doi.org/10.1038/sj.leu.2404165 PMid:16525498
  18. Ghavamzadeh A, Alimoghaddam K, Rostami S, et al. Phase II Study of Single-Agent Arsenic Trioxide for the Front-Line Therapy of Acute Promyelocytic Leukemia. J Clin Oncol. 2011.
  19. Zhou J, Zhang Y, Li J, et al. Single-agent arsenic trioxide in the treatment of children with newly diagnosed acute promyelocytic leukemia. Blood. 2010;115:1697-1702. http://dx.doi.org/10.1182/blood-2009-07-230805 PMid:20029047
  20. Vahter M. Genetic polymorphism in the biotransformation of inorganic arsenic and its role in toxicity. Toxicol Lett. 2000;112-113:209-217. http://dx.doi.org/10.1016/S0378-4274(99)00271-4
  21. Goering PL AH, Mass MJ et al. The Enigma of Arsenic Carcinogenesis: Role of metabolism. Toxicological Sciences. 1999;49:5-14.http://dx.doi.org/10.1093/toxsci/49.1.5 PMid:10367337
  22. Brouwer OF OW, Edelbroek PM et al. Inceased neurotoxicity of arsenic in MTHFR deficiency. Clin Neurol Neurosurg. 1992;94:307-310. http://dx.doi.org/10.1016/0303-8467(92)90179-7
  23. Pickett CB. Glutathione S-Transferases: Gene structure, Regulation and Biological Function. Ann Rev Biochem. 1989;58:743-764. http://dx.doi.org/10.1146/annurev.bi.58.070189.003523 PMid:2673020
  24. Chiou HY, Hsueh, Y.M, Hseih, L.L et al. Arsenic methylation capacity, body retention and null genotypes of glutathione S-transferases M1 and T1 among current arsenic exposed residents of Taiwan. Mutat Res. 1997;386:197-207. http://dx.doi.org/10.1016/S1383-5742(97)00005-7
  25. Naranmandura H, Carew MW, Xu S, et al. Comparative Toxicity of Arsenic Metabolites in Human Bladder Cancer EJ-1 Cells. Chem Res Toxicol;24:1586-1596. PMid:21815631
  26. Zhang P WS, Hu LH, Shi FD, Giu FQ, Hong GJ et al. Arsenic trioxide treated 72 cases of acute promyelocytic leukemia. Chin J Hematol. 1996;2:58.
  27. Sun HD ML, Hu XC, Zhang TD. Ai-Lin I treated 32 cases of acute promyelocytic leukemia. Chin J Integrat Chin & West Med. 1992;12:170.
  28. Treleaven J, Meller S, Farmer P, Birchall D, Goldman J, Piller G. Arsenic and Ayurveda. Leuk Lymphoma. 1993;10:343-345. http://dx.doi.org/10.3109/10428199309148558 PMid:7693104
  29. Ravandi F, Estey E, Jones D, et al. Effective treatment of acute promyelocytic leukemia with all-trans-retinoic acid, arsenic trioxide, and gemtuzumab ozogamicin. J Clin Oncol. 2009;27:504-510. http://dx.doi.org/10.1200/JCO.2008.18.6130 PMid:19075265
  30. Gore SD, Gojo I, Sekeres MA, et al. Single cycle of arsenic trioxide-based consolidation chemotherapy spares anthracycline exposure in the primary management of acute promyelocytic leukemia. J Clin Oncol. 2010;28:1047-1053. http://dx.doi.org/10.1200/JCO.2009.25.5158 PMid:20085935 PMCid:2834430
  31. Hu J, Liu YF, Wu CF, et al. Long-term efficacy and safety of all-trans retinoic acid/arsenic trioxide-based therapy in newly diagnosed acute promyelocytic leukemia. Proc Natl Acad Sci U S A. 2009;106:3342-3347. http://dx.doi.org/10.1073/pnas.0813280106 PMid:19225113 PMCid:2651325
  32. Ohnishi K, Yoshida H, Shigeno K, et al. Prolongation of the QT interval and ventricular tachycardia in patients treated with arsenic trioxide for acute promyelocytic leukemia. Ann Intern Med. 2000;133:881-885. PMid:11103058
  33. Westervelt P, Brown RA, Adkins DR, et al. Sudden death among patients with acute promyelocytic leukemia treated with arsenic trioxide. Blood. 2001;98:266-271. http://dx.doi.org/10.1182/blood.V98.2.266 PMid:11435292
  34. Unnikrishnan D, Dutcher JP, Varshneya N, et al. Torsades de pointes in 3 patients with leukemia treated with arsenic trioxide. Blood. 2001;97:1514-1516. http://dx.doi.org/10.1182/blood.V97.5.1514 PMid:11222403
  35. Niu C, Yan H, Yu T, et al. Studies on treatment of acute promyelocytic leukemia with arsenic trioxide: remission induction, follow-up, and molecular monitoring in 11 newly diagnosed and 47 relapsed acute promyelocytic leukemia patients. Blood. 1999;94:3315-3324. PMid:10552940
  36. Douer D, Tallman MS. Arsenic trioxide: new clinical experience with an old medication in hematologic malignancies. J Clin Oncol. 2005;23:2396-2410. http://dx.doi.org/10.1200/JCO.2005.10.217 PMid:15800332
  37. Niu C, Yan H, Yu T, et al. Studies on treatment of acute promyelocytic leukemia with arsenic trioxide: remission induction, follow-up, and molecular monitoring in 11 newly diagnosed and 47 relapsed acute promyelocytic leukemia patients. Blood. 1999;94:3315-3324. PMid:10552940
  38. Hei TK, Liu SX, Waldren C. Mutagenicity of arsenic in mammalian cells: role of reactive oxygen species. Proc Natl Acad Sci U S A. 1998;95:8103-8107. http://dx.doi.org/10.1073/pnas.95.14.8103
  39. Cuzick J, Evans S, Gillman M, Price Evans DA. Medicinal arsenic and internal malignancies. Br J Cancer. 1982;45:904-911. http://dx.doi.org/10.1038/bjc.1982.143 PMid:6212076 PMCid:2011026
  40. Au WY, Kumana CR, Lam CW, et al. Solid tumors subsequent to arsenic trioxide treatment for acute promyelocytic leukemia. Leuk Res. 2007;31:105-108. http://dx.doi.org/10.1016/j.leukres.2006.03.018 PMid:16725199
  41. Sanz MA, Lo-Coco F. Modern approaches to treating acute promyelocytic leukemia. J Clin Oncol. 2010;29:495-503http://dx.doi.org/10.1200/JCO.2010.32.1067 PMid:21220600
  42. Sanz MA, Grimwade D, Tallman MS, et al. Management of acute promyelocytic leukemia: recommendations from an expert panel on behalf of the European LeukemiaNet. Blood. 2009;113:1875-1891. http://dx.doi.org/10.1182/blood-2008-04-150250 PMid:18812465
  43. Mathews V, Chandy M, Srivastava A. Arsenic trioxide in the management of acute promyelocytic leukaemia. Natl Med J India. 2001;14:215-222. PMid:11547528
  44. Wang ZY, Chen Z. Acute promyelocytic leukemia: from highly fatal to highly curable. Blood. 2008;111:2505-2515. http://dx.doi.org/10.1182/blood-2007-07-102798 PMid:18299451
  45. Lo Coco F, Diverio D, Falini B, Biondi A, Nervi C, Pelicci PG. Genetic diagnosis and molecular monitoring in the management of acute promyelocytic leukemia. Blood. 1999;94:12-22. PMid:10381493
  46. Mrozek K, Heinonen K, de la Chapelle A, Bloomfield CD. Clinical significance of cytogenetics in acute myeloid leukemia. Semin Oncol. 1997;24:17-31. PMid:9045301
  47. Slack JL, Arthur DC, Lawrence D, et al. Secondary cytogenetic changes in acute promyelocytic leukemia--prognostic importance in patients treated with chemotherapy alone and association with the intron 3 breakpoint of the PML gene: a Cancer and Leukemia Group B study. J Clin Oncol. 1997;15:1786-1795. PMid:9164186
  48. De Botton S, Chevret S, Sanz M, et al. Additional chromosomal abnormalities in patients with acute promyelocytic leukaemia (APL) do not confer poor prognosis: results of APL 93 trial. Br J Haematol. 2000;111:801-806. http://dx.doi.org/10.1046/j.1365-2141.2000.02442.x PMid:11122141
  49. Mathews V, Thomas M, Srivastava VM, George B, Srivastava A, Chandy M. Impact of FLT3 mutations and secondary cytogenetic changes on the outcome of patients with newly diagnosed acute promyelocytic leukemia treated with a single agent arsenic trioxide regimen. Haematologica. 2007;92:994-995. http://dx.doi.org/10.3324/haematol.10802 PMid:17606455
  50. Gilliland DG. FLT3-activating mutations in acute promyelocytic leukaemia: a rationale for risk-adapted therapy with FLT3 inhibitors. Best Pract Res Clin Haematol. 2003;16:409-417. http://dx.doi.org/10.1016/S1521-6926(03)00063-X
  51. Gilliland DG, Griffin JD. The roles of FLT3 in hematopoiesis and leukemia. Blood. 2002;100:1532-1542. http://dx.doi.org/10.1182/blood-2002-02-0492 PMid:12176867
  52. Marasca R, Maffei R, Zucchini P, et al. Gene expression profiling of acute promyelocytic leukaemia identifies two subtypes mainly associated with Flt3 mutational status. Leukemia. 2006 Jan;20(1):103-14. PMid:16270043
  53. Gale RE, Hills R, Pizzey AR, et al. Relationship between FLT3 mutation status, biologic characteristics, and response to targeted therapy in acute promyelocytic leukemia. Blood. 2005;106:3768-3776. http://dx.doi.org/10.1182/blood-2005-04-1746 PMid:16105978
  54. Callens C, Chevret S, Cayuela JM, et al. Prognostic implication of FLT3 and Ras gene mutations in patients with acute promyelocytic leukemia (APL): a retrospective study from the European APL Group. Leukemia. 2005;19:1153-1160.http://dx.doi.org/10.1038/sj.leu.2403790 PMid:15889156
  55. Chillon MC, Santamaria C, Garcia-Sanz R, et al. Long FLT3 internal tandem duplications and reduced PML-RARalpha expression at diagnosis characterize a high-risk subgroup of acute promyelocytic leukemia patients. Haematologica. 2010;95:745-751. http://dx.doi.org/10.3324/haematol.2009.015073 PMid:20133893 PMCid:2864380
  56. Thirugnanam R, George B, Chendamarai E, et al. Comparison of clinical outcomes of patients with relapsed acute promyelocytic leukemia induced with arsenic trioxide and consolidated with either an autologous stem cell transplant or an arsenic trioxide-based regimen. Biol Blood Marrow Transplant. 2009;15:1479-1484. http://dx.doi.org/10.1016/j.bbmt.2009.07.010 PMid:19822309
  57. Zhu J, Chen Z, Lallemand-Breitenbach V, de The H. How acute promyelocytic leukaemia revived arsenic. Nat Rev Cancer. 2002;2:705-713.http://dx.doi.org/10.1038/nrc887 PMid:12209159
  58. Coe E, Schimmer AD. Catalase activity and arsenic sensitivity in acute leukemia. Leuk Lymphoma. 2008;49:1976-1981. http://dx.doi.org/10.1080/10428190802353617
  59. Zhou X, Sun H, Ellen TP, Chen H, Costa M. Arsenite alters global histone H3 methylation. Carcinogenesis. 2008;29:1831-1836. http://dx.doi.org/10.1093/carcin/bgn063 PMid:18321869 PMCid:2722848
  60. Davison K, Mann KK, Waxman S, Miller WH, Jr. JNK activation is a mediator of arsenic trioxide-induced apoptosis in acute promyelocytic leukemia cells. Blood. 2004;103:3496-3502. http://dx.doi.org/10.1182/blood-2003-05-1412 PMid:14701702
  61. Zhu J, Zhou J, Peres L, et al. A sumoylation site in PML/RARA is essential for leukemic transformation. Cancer Cell. 2005;7:143-153. http://dx.doi.org/10.1016/j.ccr.2005.01.005 PMid:15710327
  62. Lallemand-Breitenbach V, Jeanne M, Benhenda S, et al. Arsenic degrades PML or PML-RARalpha through a SUMO-triggered RNF4/ubiquitin-mediated pathway. Nat Cell Biol. 2008;10:547-555. http://dx.doi.org/10.1038/ncb1717 PMid:18408733
  63. Ling YH, Jiang JD, Holland JF, Perez-Soler R. Arsenic trioxide produces polymerization of microtubules and mitotic arrest before apoptosis in human tumor cell lines. Mol Pharmacol. 2002;62:529-538. http://dx.doi.org/10.1124/mol.62.3.529PMid:12181429
  64. Kapahi P, Takahashi T, Natoli G, et al. Inhibition of NF-kappa B activation by arsenite through reaction with a critical cysteine in the activation loop of Ikappa B kinase. J Biol Chem. 2000;275:36062-36066. http://dx.doi.org/10.1074/jbc.M007204200 PMid:10967126
  65. Hayashi T, Hideshima T, Akiyama M, et al. Arsenic trioxide inhibits growth of human multiple myeloma cells in the bone marrow microenvironment. Mol Cancer Ther. 2002;1:851-860. PMid:12492118
  66. Roboz GJ, Dias S, Lam G, et al. Arsenic trioxide induces dose- and time-dependent apoptosis of endothelium and may exert an antileukemic effect via inhibition of angiogenesis. Blood. 2000;96:1525-1530. PMid:10942401
  67. Jeanne M, Lallemand-Breitenbach V, Ferhi O, et al. PML/RARA oxidation and arsenic binding initiate the antileukemia response of As2O3. Cancer Cell. 2010;18:88-98. http://dx.doi.org/10.1016/j.ccr.2010.06.003 PMid:20609355
  68. Li L, Wang J, Ye RD, et al. PML/RARalpha fusion protein mediates the unique sensitivity to arsenic cytotoxicity in acute promyelocytic leukemia cells: Mechanisms involve the impairment of cAMP signaling and the aberrant regulation of NADPH oxidase. J Cell Physiol. 2008;217:486-493. http://dx.doi.org/10.1002/jcp.21523 PMid:18636556
  69. Dai J, Weinberg RS, Waxman S, Jing Y. Malignant cells can be sensitized to undergo growth inhibition and apoptosis by arsenic trioxide through modulation of the glutathione redox system. Blood. 1999;93:268-277. PMid:9864170
  70. Powell BL, Moser B, Stock W, et al. Arsenic trioxide improves event-free and overall survival for adults with acute promyelocytic leukemia: North American Leukemia Intergroup Study C9710. Blood. 2010;116:3751-3757. http://dx.doi.org/10.1182/blood-2010-02-269621 PMid:20705755 PMCid:2981533
