Acute promyelocytic leukemia (APL) is a distinct subtype of acute myeloid leukemia (AML) which is classified as M3 by French-American-British (FAB) Cooperative group.[1] The incidence of APL among the AML cases in children and adolescents vary from 2% in Switzerland to >50% in Nicaragua.[2] However, APL incidence among eastern Mediterranean countries is not well documented. A multicenter study from Lebanon reported 25% APL cases among AML patients.[3] In Turkey, a study disclosed an incidence of APL as 8.8% among 34 AML patients at childhood.[4]
Acute promyelocytic leukemia is characterized by the presence of reciprocal translocation between chromosomes 15 and 17 [t(15;17); promyelocytic leukemia gene (PML) - retinoic acid receptor gene alpha (RARA) fusion].[5,6] In addition to PML, rare partner genes such as nucleophosmin (NPM1; 5q35), nuclear mitotic apparatus protein 1 (NUMA1; 11q13), promyelocytic leukemia zinc finger (PLZF; 11q23), and signal transducer and activator of transcription (STAT) 5β (STAT5b; 17q21) have been defined.[7] PML-RARA fusion protein impairs differentiation of the myeloid progenitor cells and leads to arrested maturation at the promyelocytic stage. By binding to the PML-RARA fusion protein, ATRA induces differentiation of leukemic cells into mature granulocytes and ultimately apoptosis.[8,9] Coagulopathy and signs of clinical hemorrhage or thrombotic complications and an excellent response to all-trans retinoic acid (ATRA) are distinctive features of APL.[10] Anthracycline-based chemotherapy and ATRA combination are curative for at least 80% of newly diagnosed APL patients.[10,11,12] Arsenic trioxide (ATO) initially was introduced into the treatment of relapsed APL. Subsequently, it was used as first-line APL therapy, which can achieve remission rates of 86%.[13,14,15]
Here, we report clinical, and laboratory findings, toxicities of ATRA treatment and outcome of APL patients, followed in our department.

We retrospectively reviewed the medical records of children (age < 18 years) diagnosed with AML in our pediatric hematology department between January 2006- December 2016. Demographic, clinical, and laboratory data (hematological and biochemical findings; bone marrow morphology, immune phenotype, chromosomal and cytogenetic analysis; radiologic and echocardiographic findings), chemotherapy protocols, toxicities and the prognosis of the children were recorded for all APL patients. Morphologic diagnosis of APL was based on FAB criteria.[1] Leukemic cells were analyzed by flow cytometry, and the diagnosis was confirmed by the presence of t(15;17) with fluorescence in situ hybridization (FISH) analysis. Patients were treated according to APL-93 trial, GIMEMA-AIEOP AIDA between 2006-2010 and AML-BFM Interim 2004 therapy protocol between 2011-2016.[11,16,17] ATRA courses were used in all protocols with a dose of 25 to 45 mg/m²/d from the induction to during with maintenance treatment. Maintenance treatment was planned for 1 to 2 years in AML-BFM 2004, APL-93 and AIDA protocols. However, none of the regimens included ATO. Complete remission was defined according to the report of the National Cancer Institute workshop criteria.[18] Cytogenetic remission using FISH analysis was defined as the disappearance of the t(15;17). Early death was defined as the death of any cause within 30 days of admission.[19] The overall survival (OS) was calculated from the date of diagnosis to death of any cause or last follow-up. ATRA related adverse effects such as fever, weight gain, dyspnea, interstitial pulmonary infiltrate, hypotension, renal insufficiency, and hyperbilirubinemia was also recorded as differentiation syndrome (DS) which was defined according to Frankel et al.[20]
Statistical analysis. Statistical analysis was performed by using Statistical Package for the Social Sciences for Windows (SPSS) version 18.0 (SPSS Inc., South Wacker Drive, Chicago, IL, USA). The variables were investigated using visual and analytical methods (Kolmogorov- Smirnov/Shapiro-Wilk's test) to determine whether or not they are normally distributed. Descriptive analyses were presented using means and standard deviations for normally distributed and median and minimum-maximum for non-normally distributed variables. The overall survivals of APL patients were calculated using the Kaplan–Meier methods and the log-rank test.

Between January 2006 - December 2016, 83 children diagnosed with AML at our center. Among them, 17 patients (20.5%) with newly diagnosed APL were included in the study. Eight girls and nine boys [median age 13.5 years (range 1.5-17)] were included in the study. Pretreatment laboratory findings and detailed characteristics of the patients are reported in Table 1 and Table 2.

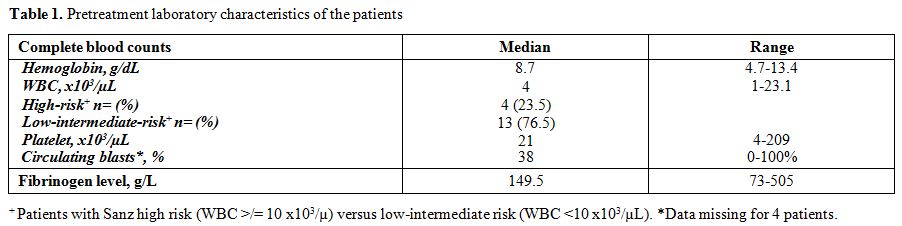

Table 1. Pretreatment laboratory characteristics of the patients

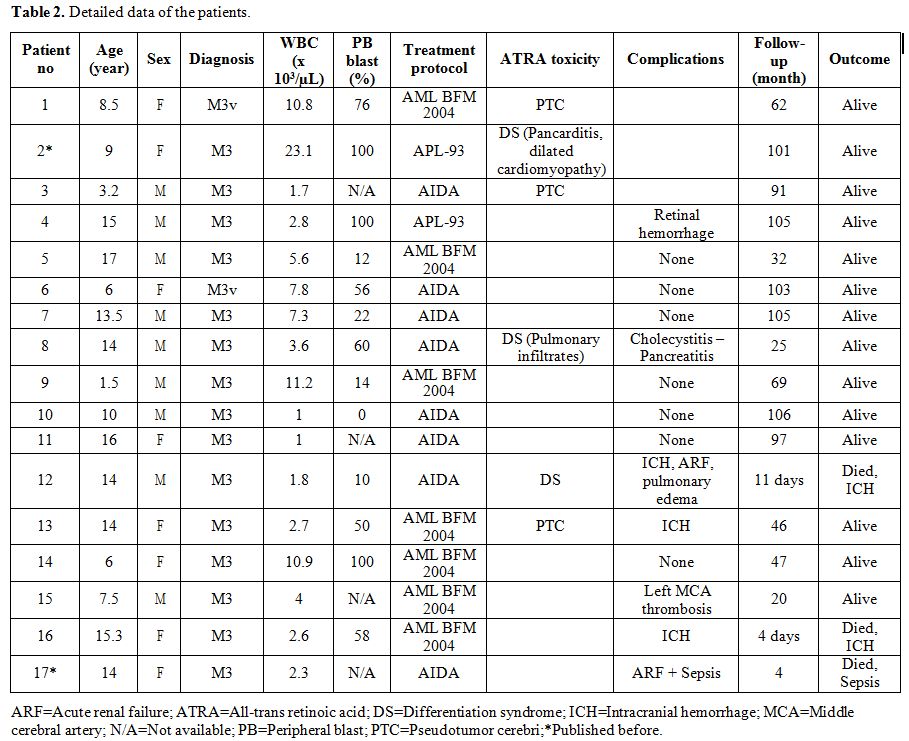

Table 2. Detailed data of the patients.

Bleeding (76.5%), fever (58.8%), and fatigue (47%) were the most common presenting signs and symptoms. Bone pain and the headache were seen in four and three patients. Bleeding was cutaneous in 6, and mucosal (e.g., wet purpura, epistaxis, and gingival bleeding) in 7 patients. Furthermore, hematuria, hemoptysis, and retinal hemorrhage were presented, each in one patient. Intracranial hemorrhage (ICH) was demonstrated in three patients; one of them at admission and two others were during 11^th and 23^rd days of induction treatment. The patient who had ICH demonstrated 23^rd days of induction had coagulopathy at admission that recovered with ATRA treatment. Unfortunately, subacute/chronic subdural hematoma with midline shift was revealed while she had a neutropenic fever period with thrombocytopenia. One patient who initially diagnosed with left middle cerebral artery thrombosis, diagnosed with APL on the 5th day of admission. Organomegaly was present in seven (41%) patients, including splenomegaly in five and hepatomegaly in five patients. Additionally, lymphadenopathy or central nervous involvement detected in one patient each.
Median hemoglobin, white blood cell (WBC) and platelet counts were summarized in Table 1.
Patients reclassified with Sanz high-risk (WBC ≥ 10 x10³/µL) versus low-intermediate-risk (WBC <10 x10³/µL) in Table 1.[21] Peripheral blasts were presented in 16 (94%) of 17 patients at admission. Fourteen patients (82%) had coagulopathy (increased PT, aPTT, and decreased fibrinogen levels). D-dimer levels were elevated in the 11 of the 15 patient. Fifteen patients (88%) had classical FAB M3 type blasts at bone marrow morphology; two patients (12%) had M3v blasts which was estimated by morphology and then confirmed by flow cytometric findings. Blasts of 15 patients who had classical hypergranular APL were positive for CD117, CD13, CD33 markers. Out of 15, three patients’ blasts were positive for CD34 and/or HLA DR. But, flow cytometric analysis of 2 patients with M3v APL differed from classical APL by co-expression of CD2 and CD34 in addition to CD117, CD13. Meanwhile, CD2 expression was present at a low level (24%) in only one patient with classical M3. All of the patients had t(15;17) by FISH analysis, and three patients (18%) had hypodiploid karyotype as well. Fifteen patients (88%) achieved complete remission. Mean morphologic remission and complete cytogenetic remission intervals were 30.4 ± 9.1 days (15-45 days) and 51.7 ± 19.6 days (26-98 days), respectively. There were no relapses during the entire follow-up period through June 2017 (follow-up range: 10-106 months). Two patients died at the induction before hematological response achieved. The induction death rate and the overall mortality were 12% and 17.5%, respectively. One of them, a 15-year old girl who admitted in a coma with massive ICH. Her history revealed that she had been followed 72 hours in a local hospital before diagnosis. Unfortunately, despite ATRA and supportive treatment, she died at day 4 of admission to our hospital. We suggested that delay in the ATRA treatment that caused ICH was the main cause of death. Another patient, a 14-year old boy died due to acute renal failure, pulmonary edema, and ICH at day 11 of induction treatment. Though DS was suggested, sepsis and DIC were the additional causative factors that ultimately caused death. Additionally, a 14-year-old girl died due to sepsis four months after the diagnosis. After excluding these three patients, median follow up period of the patients was 69 months (range 10 – 106). Estimated 5-year overall survival rate was 82.5 ± 9.1 (95 CI: 64.7 – 100.4).
Several complications were detected during APL treatment (Table 2). Three patients (18%) developed pseudotumor cerebri (PTC); one of them diagnosed at the fifth month, at the early phase of maintenance therapy. She treated with topiramate and repeated lumbar punctures. The second patient developed PTC 10 months after APL diagnosis while receiving maintenance treatment. He was treated with acetazolamide and serial lumbar punctures. The last patient developed PTC 45 days after diagnosis of APL and treated with acetazolamide, serial lumbar punctures, and dexamethasone. A 14-y-old boy developed pulmonary infiltrates, tinnitus and hypotension on the sixth day of induction treatment, diagnosed with DS, responded to dexamethasone. Additionally, he suffered from cholecystitis and pancreatitis at the second month of APL treatment. A previously described 9-year old girl from our department who developed endocarditis and myocarditis at the induction of the APL treatment, recovered after cessation of ATRA who has been reported elsewhere.[22] However, readministration of ATRA at the maintenance therapy caused pancarditis and severe pulmonary edema that might have been part of DS, which recovered with corticosteroids treatment and discontinuation of ATRA. Unfortunately, she developed dilated cardiomyopathy and still ongoing with digitalis treatment. The clinical picture strongly suggested the ATRA treatment as the causative factor even if anthracyclines were an additional risk factor. Febrile neutropenia has been observed during induction treatment in 15 patients (88%), including septicemia and typhilitis. Median febrile neutropenia attack rate was 3.5 (range 1-7) during the treatment period.

Pediatric APL represents 20.5% of AML cases in our cohort. Even if our center is a reference hospital in Ankara, this high incidence of APL needs to be confirmed in larger pediatric series among Turkey. Early diagnosis and immediate treatment with ATRA may reduce hemorrhagic complications that lead to early morbidity and mortality, and significant concern is discrimination of APL from other subtypes of AML. In our patients whose presenting, symptoms are bleeding and/or coagulopathy, expeditious immunophenotypic analysis to exclude M3 or M3v is performed. We started ATRA as soon as possible, although two patients experienced ICH after the first week of ATRA. Unfortunately, delays in diagnosis contributed to mortality in one of the patient. However, favorable response to ATRA has been achieved in the rest of the patients. Morphology and immunophenotypic analysis are still essential tools for rapid recognition of APL. Most of our APL cases presented as hypergranular or classical M3, albeit morphological hypogranular or microgranular variant type, M3v, was also described in 2 patients (12%). Hypogranular variant type accounts for 15-20% of APL cases which is characterized by promyelocytes with bilobed-multilobed or angel wing shaped nucleus look as if monoblastic leukemia.[8,23] On both occasions, identification of the cytogenetic abnormality, t(15;17) or PML/RARA translocation has utmost importance. M3v morphology is not diagnostic; however, co- expression of CD2 and CD34 markers are remarkable and useful for early diagnosis.[24,25] The absence of HLA-DR, low expression or absence of CD34, and positivity for CD13 and/or CD33 markers has been reported on both forms.[24,25] In our cohort, fifteen patients (88%) expressed CD117, CD13, CD33 markers. They did not express CD34 and/or HLA-DR except for three cases (17.5%) who diagnosed with APL ultimately. Two patients with hypogranular variant were differed from classical APL by co-expression of CD2 and CD34 (100%) in this study.
APL cases were frequently presented with consumptive coagulopathy that may cause life- threatening hemorrhages.[26] Furthermore, thrombotic complications may also be seen infrequently.[26] About ¾ of our APL patients had hemorrhagic findings at admission or induction treatment. Severe bleeding manifested as intracranial hemorrhage was present in three patients. One of them admitted with severe ICH, but we demonstrated ICH in two patients after the first week of ATRA treatment. The other patient who had bleeding on day 11 of induction, had been diagnosed with sepsis and DIC, and also possible DS. Patients with ICH has been supported with aggressive platelet and fibrinogen replacement along with ATRA therapy guided by numerous coagulation studies. ATRA has dramatically enhanced survival rates and diminished relapse rates in APL patients. In the present study, five-year overall survival (OS) and early death rate were found to be 82.5% and 12%, respectively. ATRA resistance and relapse were not observed in any patient. Our results were comparable to those obtained in population-based studies and also to early death rates for APL.[27,28] Nevertheless, Abla et al.[19] reported the incidence of early death as 4.7%, recently.
High WBC, high peripheral blast count, M3v and black ethnicity were independent predictors of early hemorrhagic death in several studies.[19,29] However, our patients who died due to early ICH had low WBC counts (1.8 and 2.6 x10³/µL), and their peripheral blast percentages were also low (10 and 58%, Table 2). Hypogranular APL patients of our cohort did not have severe hemorrhagic complications. The patients who relieved from early hemorrhagic complications have an excellent OS after ATRA era, as is our patients.
In our study, mean morphologic and cytogenetic remission by FISH analysis has been obtained at days 30.4 (15-45 days) and 51.7 (26-98 days), respectively. One may speculate that mean cytogenetic remission times were early because the FISH analysis is not sensitive to polymerase chain reaction (PCR) based methods to detect PML/RARA. We were not able to analyze PML/RARA translocation during treatment for all patients. Zhou et al.[14] reported that PML/RARA disappeared within 3 to 9 months after complete hematological response using PCR.
Although excellent remission rates, different from other AML types, might be attributable to ATRA, six patients in this study have experienced severe side effects such as PTC, pancarditis, and pulmonary infiltrates. Two patients suffered from DS while they were receiving AIDA protocol, but no DS was seen with AML BFM 2004 protocol. Otherwise, there was no difference in toxicity (e.g., heart) and efficacy between these protocols in this study. Pseudotumor cerebri incidence was reported to be 1.7 - 16% in patients on ATRA therapy.[30,31] In our study, PTC incidence was 17.6%, but clear definitions and incidence of this complication were not established. Botton et al.[31] recommended lower ATRA (25mg/m²) doses to avoid from PTC. In contrast to that study, our patients were receiving low dose ATRA (25mg/m²) courses when they developed PTC.

Acute Promyelocytic Leukemia in Children: A Single Centre Experience from Turkey
