Paggi

Clinical history. The patient was a 71 years-old male, affected with symptomatic WM since 2000, previously treated with a CHOP-like chemotherapy followed by rituximab consolidation in 2001. In 2006 he received rituximab and chlorambucil for a first relapse; in 2011, for a second relapse, he underwent treatment with rituximab, fludarabine, and cyclophosphamide and in 2017 with rituximab and bendamustine for a subsequent recurrence. For chronic obstructive pulmonary disease (COPD) exacerbations, the patients experienced several hospitalizations since 2018 and started intravenous immunoglobulin support for secondary, symptomatic hypogammaglobulinemia. The patient was also receiving entecavir for chronic HBV infection. Due to the increase of IgM protein, the presence of anemia, and the emergence of abdominal lymphadenopathies, ibrutinib was started in June 2019: a complete bone marrow (BM) evaluation was performed before starting the treatment, showing 80% of clonal lymphoplasmacytic BM infiltration. Multiparameter flow cytometry demonstrated a characteristic WM phenotype: CD19+, CD22+, CD79b+, FMC7+, IgM+, monoclonal kappa (k) light chain surface expression. MYD88 gene mutation was tested as well, resulting positive for MYD88^L265P mutation.
A partial response was then obtained, with the resolution of anemia, lymphadenopathy reduction, and decreased IgM monoclonal protein. In October 2020, the patient was admitted for symptomatic COVID-19 pneumonia, treated with remdesivir with rapid improvement.
Diagnosis of invasive aspergillosis. In December 2020, invasive pulmonary aspergillosis (IA) was diagnosed, according to sputum samples positive for Aspergillus flavus and A. fumigatus, bronchoalveolar lavage (BAL) Aspergillus spp. positive polymerase chain reaction (PCR) detected by polymerase chain reaction (PCR), BAL-sample's galactomannan optical density index of 1.71, and chest high-resolution CT findings consistent with the disease. Antifungal therapy with isavuconazole was started in January 2021, improving the pulmonary lesions. Considering the diagnosis, ibrutinib treatment was briefly interrupted and restarted at a lower dose, considering the pharmacological interaction with isavuconazole.
In March 2021, he was admitted to a peripheral hospital for an epileptic crisis. A brainstem contrast-enhanced (CE) magnetic resonance (MR) was performed, showing a 12 mm nodular lesion in the left parietal lobe, weakly enhanced in T1-weighted (T1W) sequences and hypointense in T2-weighted (T2W) sequences, with ring enhancement, and a similar 4 mm finding in the right lobe. Additionally, the patient experienced a likely ischemic stroke.
Ibrutinib was suspended for cerebral IA suspect, a lumbar puncture was executed (microbiological samples resulted in negatives), and a cerebral biopsy of the bigger lesion was performed after a month, with evidence of fungal hyphae and spores and positive Aspergillus spp. PCR, confirming the encephalic fungal localization.
Laboratoristic progression of Waldenström macroglobulinemia. In May 2021, he was admitted to our hospital for hepatic toxicity related to isavuconazole, and antifungal therapy was switched firstly to liposomal B amphotericin, then to voriconazole. Brain C.E. MR in May 2021 was substantially unchanged. In August 2021, the stability of the radiological brain picture and improving lung imaging were confirmed with an additional CT examination.
During the same period, considering the evidence of atypical lymphocytes in blood smear and the serum levels of IgM 29.4 g/L (normal values 0.4-2.3), BM biopsy (BMB) was performed, with evidence of lymphoid interstitial infiltrate of 70-80% of cellularity, plasmacytoid elements and monoclonal expression of k light chain and M heavy chain: considering the absence of symptoms related to WM and the concomitant IA, the patient did not start any treatment for WM.
Orbital infiltration - Initial work-up. In September 2021, the patient was admitted for fever. For the evidence of a slight lymphocytosis, a peripheral blood flow cytometry was performed and showed the presence of a mature B lymphocyte population (CD19+, CD22+, IgM+ CD23 -/+ and clonal expression of k light chain). During hospitalization, the patient complained of bilateral conjunctivitis: at the examination, bilateral nodules were palpable under the eyebrow arch without pain, vision deficit, diplopia, or corneal involvement. Orbit CT (Figure 1) evidenced bilateral increased lacrimal glands (20x10 mm). Several (> 10) small and hyperdense nodularities (from 2 to 15 mm) were detected bilaterally in the eyelid's soft tissues and intra- and extra-conical endo-orbital areas. Nodular lesions were confirmed with an orbit CE MR (Figure 1), iso/hypointense in T1W sequences, and hypointense in T2W, with contrast enhancement. Similar findings were described in both maxillary sinuses and ethmoidal lamina papyracea. The Serum IgM level was 46 g/L (normal value: 0.4-2.3).

Figure 1. Orbit CT (a), T1-weighted magnetic resonance (b), contrast enhanced T1-weighted magnetic resonance (c), T2-weighted magnetic resonance (d) showing bilateral enlargement of lacrimal glands and intra-orbital nodules (October 2021)

Differential Diagnosis. Orbital masses in the adult can occur in a wide range of diseases, including infections (e.g., Staphylococcus spp., Mycobacterium tuberculosis, Aspergillus spp.), inflammatory diseases (e.g., IgG4-related sclerosing disease, systemic amyloidosis), vascular lesions (e.g., venous and arteriovenous malformations), benign (e.g. schwannoma, neurofibroma) and malignant tumors (e.g., B-cell lymphoma, metastasis).[5] Lacrimal gland lesions account for approximately 10% of all biopsied orbital masses: the most common causes are inflammatory (as IgG-4-related disease) or lymphoproliferative disorders, with potential bilateral involvement.[6,7]
Considering the subacute onset of the manifestation (4 months since the last brain MR) and that intraorbital lesions are uncommon but possible in both IA and WM, we focused on the differential diagnosis between these two pathological entities. Orbital presentation's main differences are described in Table 1.

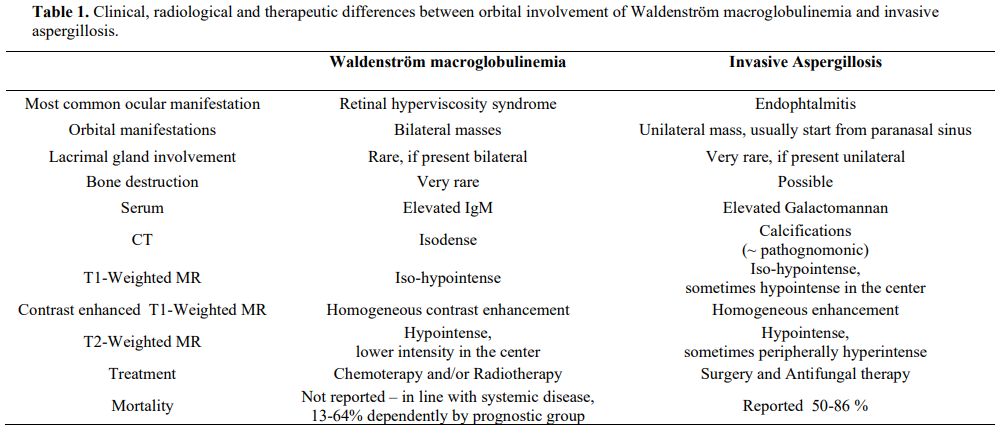

Table 1. Clinical, radiological and therapeutic differences between orbital involvement of Waldenström macroglobulinemia and invasive aspergillosis.

Further Examinations. Considering IA pulmonary picture improvement and encephalic lesions stability after eight months of antifungal therapy (Figure 2) and the evidence of WM progression at BMB with peripheral blood involvement, after a multidisciplinary discussion, treatment with bortezomib (a proteasome inhibitor) was started in October 2021. At the same time, voriconazole was suspended, and the patient started posaconazole prophylaxis. According to ophthalmological and neuro-radiological evaluation, the patient was discharged with a scheduled clinical and radiological follow-up. He initially reported conjunctival chemosis reduction with decreased swelling, especially of the right eye. Five cycles of bortezomib were administered until February 2022. The patient was admitted in March 2022 for COPD exacerbation, presenting worsening bilateral orbital edema (Figure 3): decreasing pulmonary aspergillosis lesions were confirmed at CT exam, in line with negative serum beta-D-glucan ad galactomannan, with no evidence of IA encephalic radiologic worsening. However, MR examination evidenced increased dimensions of known orbital lesions (Figure 4), with a worsening picture of erosive foci in subcutaneous, maxillary, and ethmoidal areas, diffused also in left frontal and sphenoidal sinuses, mastoid and ethmoidal cells, bilaterally in nasal turbinates.

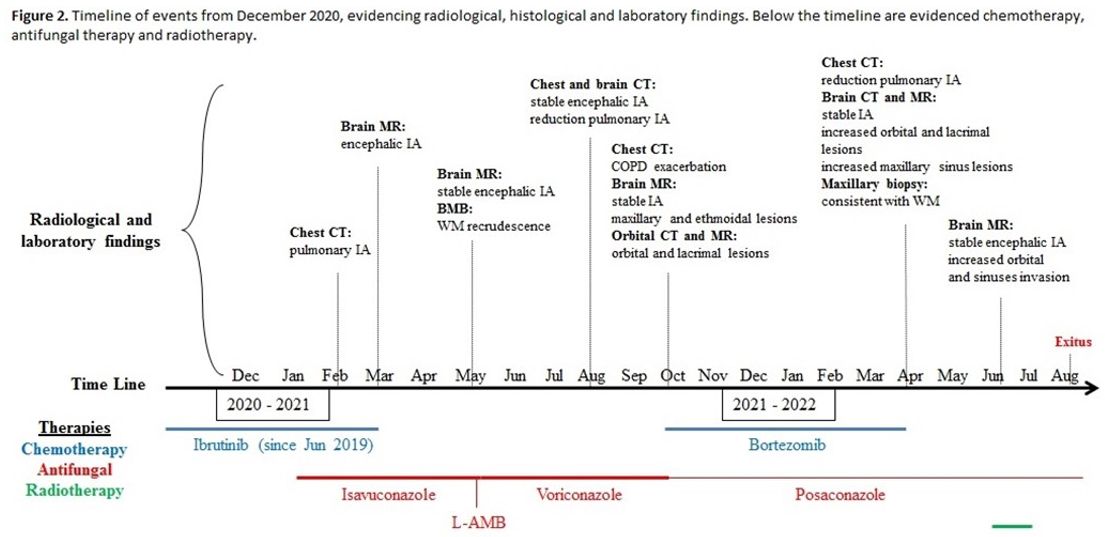

Figure 2. Timeline of events from December 2020, evidencing radiological, histological and laboratory findings. Below the timeline are evidenced chemotherapy.

Figure 3. Evidence of bilateral orbital oedema and subcutaneus palpebral nodules at the clinical examination, April 2022.

Figure 4. Progression of lacrimal glands and intra-orbital nodules enlargement, contrast enhanced T1-weighted magnetic resonance , comparison between October 2021, April 2022 and June 2022.

Final Diagnosis. Considering the worsening clinical picture, according to maxillofacial surgeons, palpebral and maxillary biopsies were performed. The latter sample evidenced a picture consistent with LPL (lymphoid proliferation with plasma cells expressing IgM). Additional therapeutic cycles with bortezomib were not performed because of the increased infection risk and the progressively worsening performance status. IgM levels were reduced to 22.4 g/L (normal values 0.4-2.3).
Orbital infiltration was confirmed as a progressive WM involvement; interestingly, only eighteen cases in the literature from 1967 to nowadays report similar findings (Table 2). Lacrimal gland involvement is reported in only seven cases.[8-14]

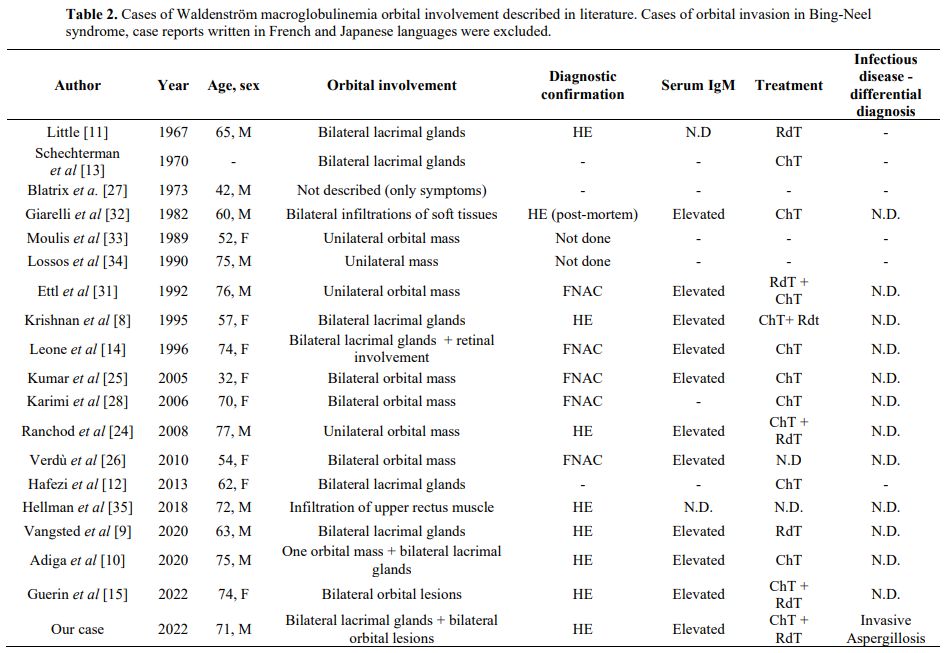

Table 2. Cases of Waldenström macroglobulinemia orbital involvement described in literature. Cases of orbital invasion in Bing-Neel syndrome, case reports written in French and Japanese languages were excluded.

In June 2022, intraorbital and maxillofacial diffusion worsened (Figure 4), involving nasal bones and extending to the left infratemporal fossa and alveolar processes through the ipsilateral maxillary sinus. Palliative radiotherapy was performed in June and July 2022. The patient experienced an additional COPD exacerbation needing hospitalization in July 2022 with concurrent pancytopenia (red blood cells 3.04x10¹²/L, white blood cell 1.18x10⁹/L, neutrophils 0.86x10⁹/L, platelets 51x10⁹/L). Serological markers of fungal infection were persistently negative; an antimicrobial regimen and recombinant human granulocyte colony-stimulating factor (Filgrastim) were introduced. The patient was discharged after one week and died in August 2022.

The case denotes the diagnostic and therapeutic complexity of a patient affected by WM progression, a pathology requiring a multidisciplinary approach[4,15,16] in the context of a pulmonary and encephalic IA.
Disseminate or extrapulmonary IA is commonly associated with hematopoietic cell/solid organ transplantation and hematologic malignant therapy:[17] in particular, association with Bruton-kinase inhibitor (e.g., ibrutinib) is well described,[18-20] with encephalic involvement commonly reported.[19]
The most common Aspergillus spp. ocular manifestation is endophthalmitis, while the typical orbital aspergillosis is characterized by unilateral painful, red eye with proptosis,[21] usually starting from paranasal sinuses.[22] The involvement of lacrimal sack has been rarely described in the literature.[21]
In WM, the most common ocular manifestation (present in up to 34% of cases)[23] is hyperviscosity syndrome associated with funduscopic abnormalities, characterized by characteristically tortuous "sausage link"-like retinal veins. Tumor infiltration of the orbital and periorbital tissues, involving retro-orbital lymphoid tissue and lacrimal glands, rarely occurs.[24] If it happens, it is described as bilateral masses [8,15,25,26], in some cases with palpebral edema,[9,26] nodular palpebral involvement,[10] and proptosis.[25] Bilateral swelling of lacrimal glands is an extremely rare presentation of WM and has been described only in a few cases in the literature, [8-14,27] as well as bone involvement.[28] Orbital infiltration can be present also in Bing-Neel syndrome, a WM malignant form of the central nervous system, but usually with a more extended involvement.[29,30] Radiologically, LPL lesions are usually mildly hypointense in T1W and T2W MR imaging,[24,28,31] probably for the high density of tumor cells and low interstitial water content.[31] Lesions, shown in T1W sequences, are also characterized by homogeneous CE.[24,28,31]Treatment for WM orbital involvement is not well defined, and in published case reports, chemotherapy alone[10,14,28] or combined with local radiotherapy[8,15,24] was used, with a reduction of symptoms, intraorbital masses, and blood IgM levels. In our case, although the reduction of IgM level (22.4 vs. 46 g/L), symptoms persisted, and orbital and maxillofacial foci gradually increased in size

Orbital Infiltration in a Patient with Waldenström Macroglobulinemia: Need for Multidisciplinary Aapproach and Comparison with the Literature
